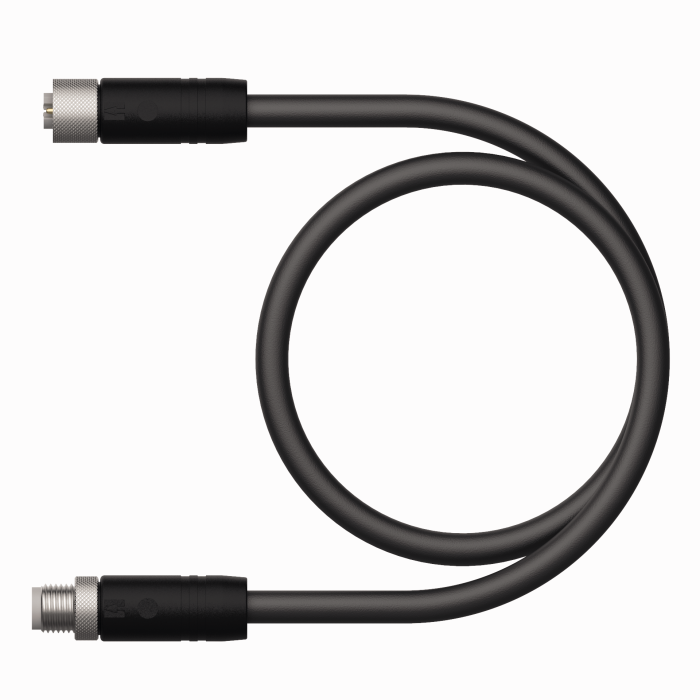

Supply Cable - M12 Power

RKS46PTB-10-RSS46PTB/TXL

Order ID no. 100024017

Cable length (m): 10
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Application: Power
Number of Conductors: 4
Core cross-section (mm²): 1.5
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus

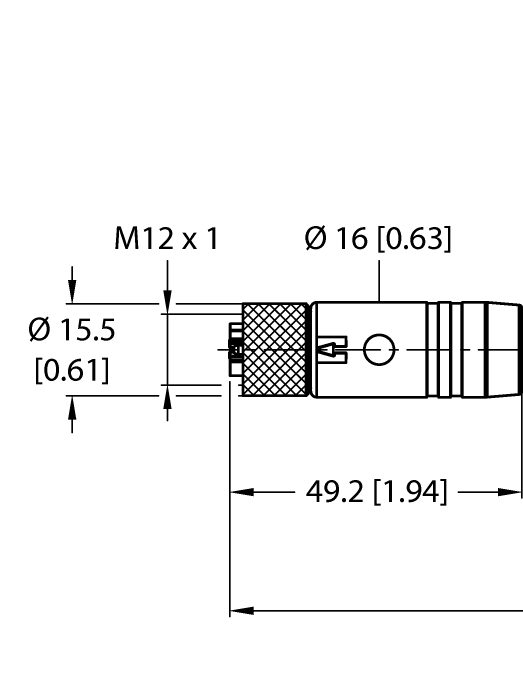

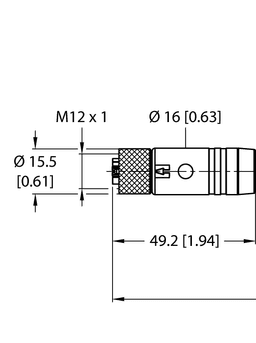

Connector A: Female, M12 × 1, Straight, T-coded
Number of Pins: 4
Current (A): 16
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Design: Extension Cable

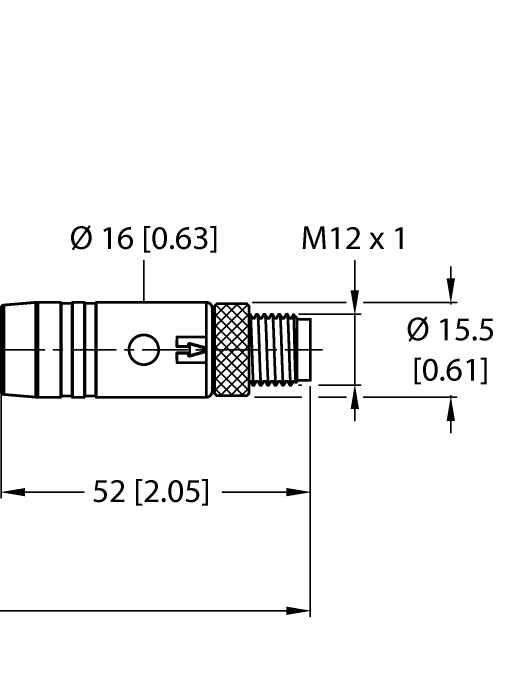

Connector B: Male, M12 × 1, Straight, T-coded
Number of Pins: 4
