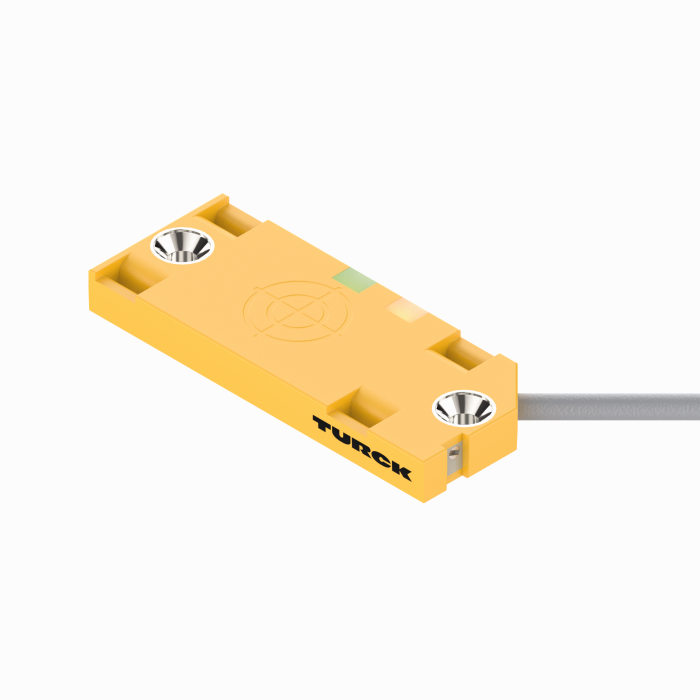

Capacitive Sensor
BCE10-QF5.5-AP6X2-0.3-PSG3M
Order ID no. 100029068| In Stock | |
| List Price | PLN 254.73 |
Item TotalPLN 254.73
Quantity
- Protection class
- IP65
- Switching element function
- NO contact
- Cable length
- 0.3
- Approvals
- UL
- Design
- Rectangular
- Electrical connection
- Cable with connector
- Connector type
- M8 × 1
- Housing material
- Plastic
- Housing quality
- PP
- Ambient temperature min.
- -10
- Ambient temperature max.
- 60
- Measuring principle
- Capacitive
- Mounting conditions
- Flush
- Operating voltage
- DC
- Rated switching distance
- 10
- Construction size

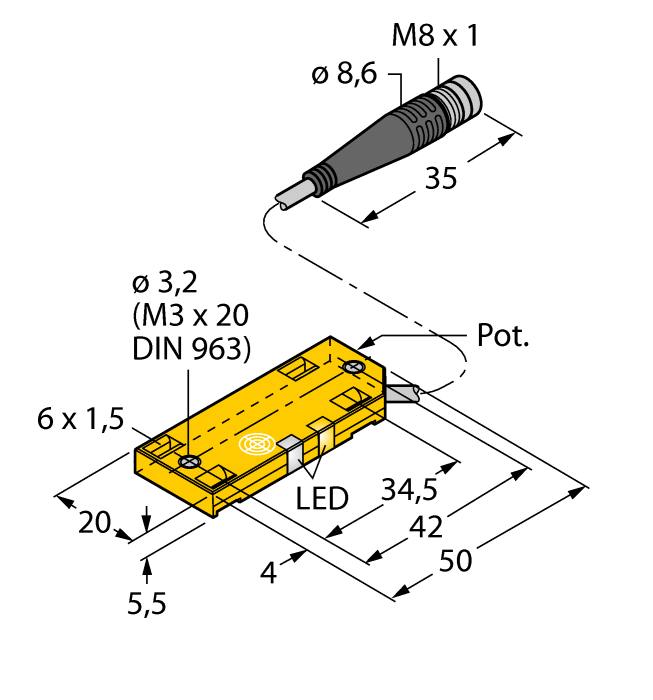

- 54 x 20.3 x 5.5 mm
- Output function
- NO contact, PNP
Key Features
- Electrical connection
- Cable with connector
- Mounting conditions
- Flush
- Rated switching distance
- 10
