RES-108B12T-9E19B-B3M12 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

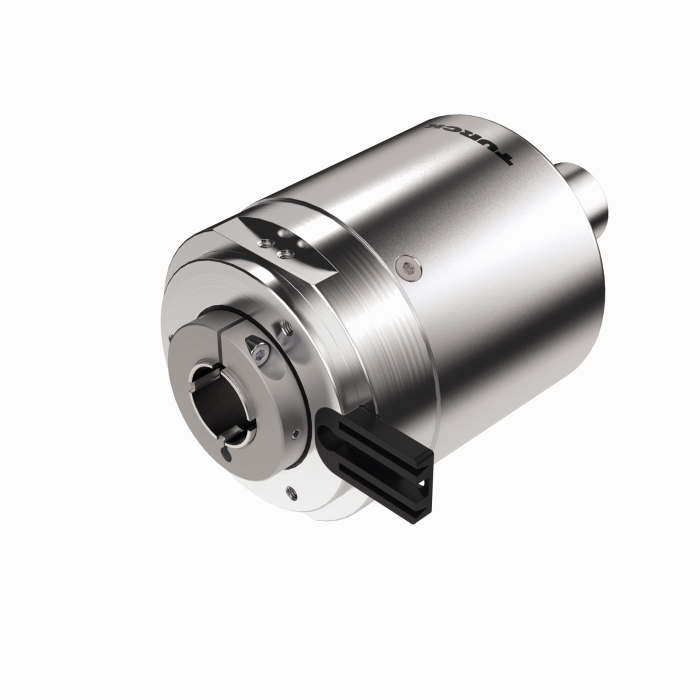

Absolute Rotary Encoder - Singleturn
RES-108B12T-9E19B-B3M12
Order ID no. 100046570
In Stock
List Price
PLN 3,795.40
home
Home
Loading...
Technical Data
Protection class
IP67
Communication protocol
PROFINET
Electrical connection
Connector
Connector type
3 x M12
Housing material
Aluminium
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Measuring principle
Optical
Output type
Absolute singleturn
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
12
Flange diameter (mm)
58
Flange type
Flange with mounting element
Measuring range
0…360°
Key Features
Output type
Absolute singleturn
Flange diameter (mm)
58
Shaft diameter D (mm)
12
Shaft Type
Blind hole shaft
