RSS-RSS-8814-25M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

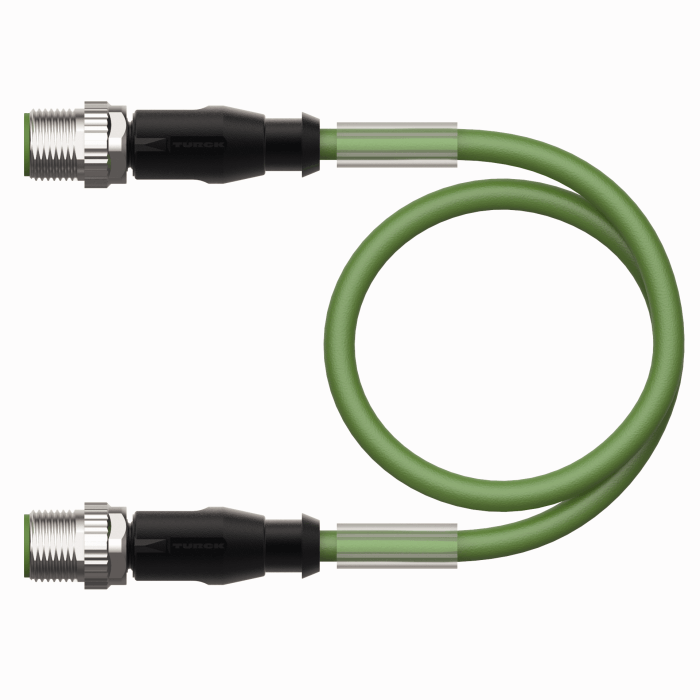

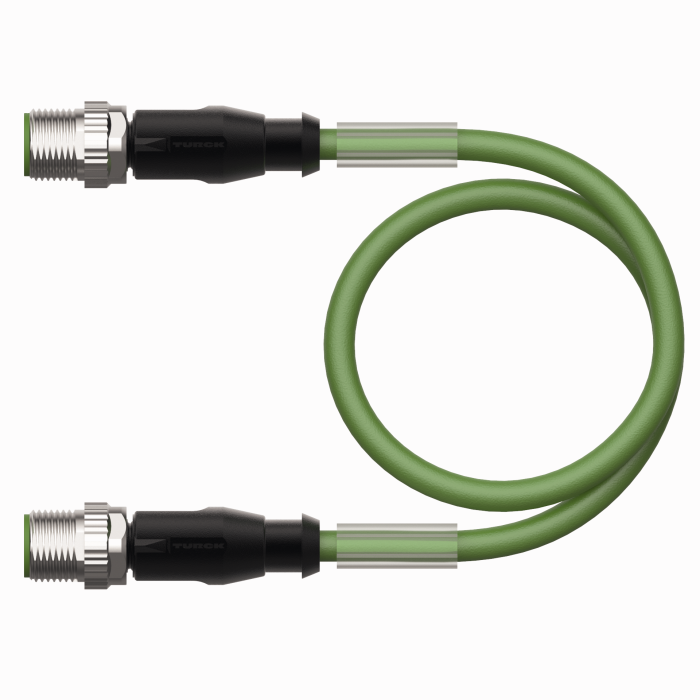

Industrial Ethernet Cable
RSS-RSS-8814-25M
Order ID no. 100024274
In Stock
Price Group
K2
List Price
PLN 841.61
home
Home
Loading...
Technical Data
Cable length
25
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Application
Data
Number of Conductors
8
Core cross-section (mm²)
0.14
Network protocol
Ethernet
Cable quality
PUR
Cable color
Green
Approvals
cULus

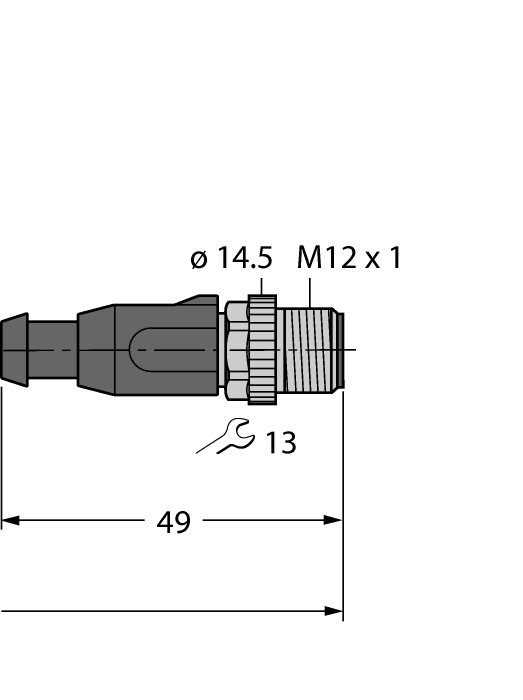

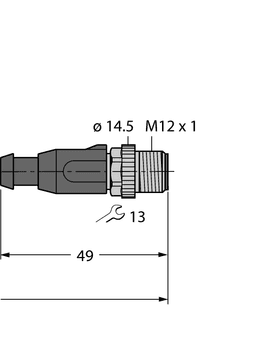

Connector A
Male, M12 × 1, Straight, A-coded
Number of pins
8
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Design
Extension Cable

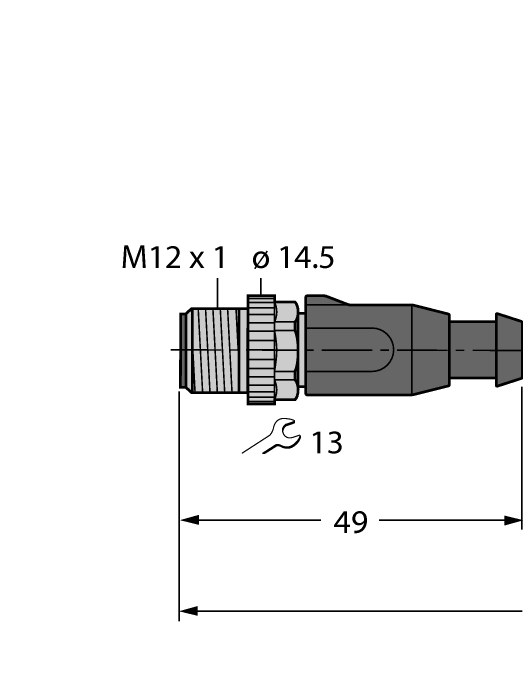

Connector B
Male, M12 × 1, Straight, A-coded
Number of Pins
8
Key Features
Cable length
25
Cable quality
PUR
Connector A
Male, M12 × 1, Straight, A-coded
Connector B
Male, M12 × 1, Straight, A-coded
