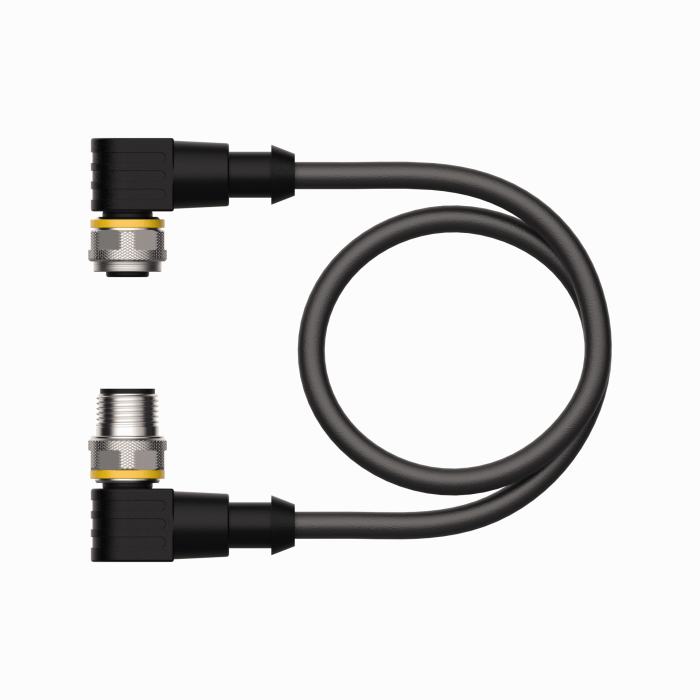

Actuator and Sensor Cable, PVC
WKC4T-2-WSC4T/TEL
Order ID no. 6625252
home
Home
Loading...
Technical Data
Cable length (m)
2
Ambient temperature min. (°C)
-5
Ambient temperature max. (°C)
80
Application
Signal
Number of Conductors
3
Core cross-section (mm²)
0.34
Cable quality
PVC
Cable color
Black
Approvals
cULus
Connector A
Female, M12 × 1, Angled, A-coded
Number of Pins
3
Voltage (V)
250
Current (A)
4
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Design
Extension Cable
Connector B

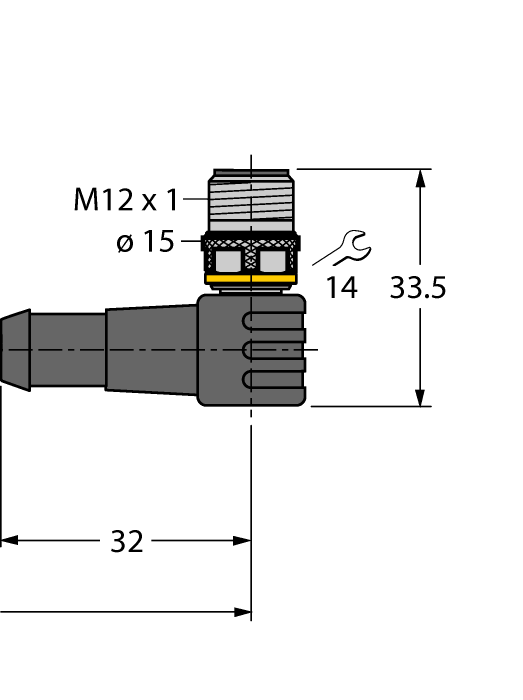

Male, M12 × 1, Angled, A-coded
Number of Pins
3
Key Features
Cable length (m)
2
Cable quality
PVC
Connector A
Female, M12 × 1, Angled, A-coded
Connector B
Male, M12 × 1, Angled, A-coded
home
Turck-Shop
Connectivity
Cordsets
WKC4T-2-WSC4T/TEL
In Stock
Price Group
H1
List Price
PLN 76.19
Item Total
PLN 76.19
