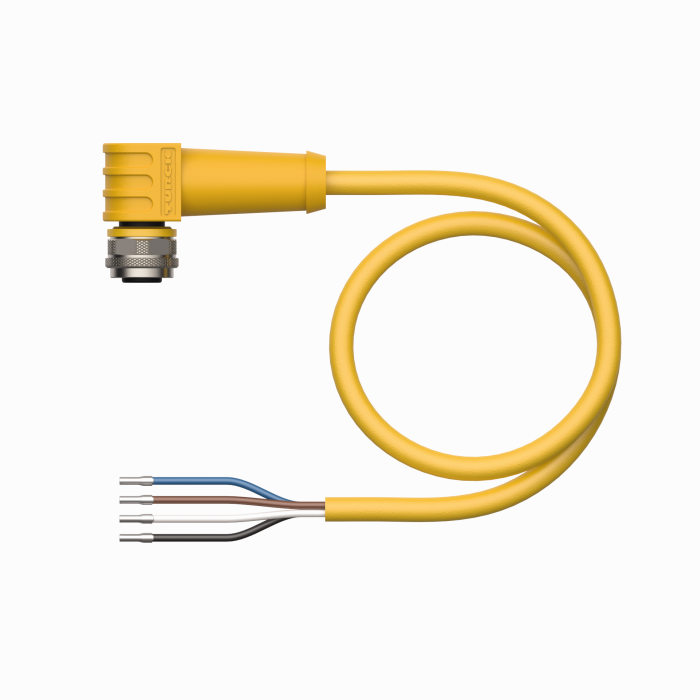

Actuator and Sensor Cable, PUR

WKS4.5T-5/TXY3013

Order ID no. 6631079

Cable length: 5
Ambient temperature min.: -25
Ambient temperature max.: 80
Application: Signal
Number of Conductors: 5
Core cross-section: 0.34
Cable quality: PUR
Cable color: Yellow
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 5
Voltage: 60
Current: 4
Coupling nut/screw material A: Brass
Design: Connection Cable
