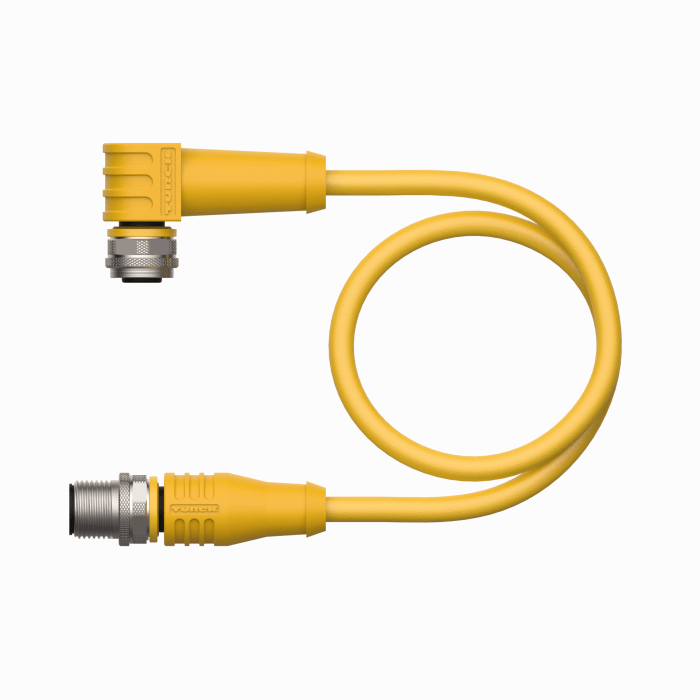

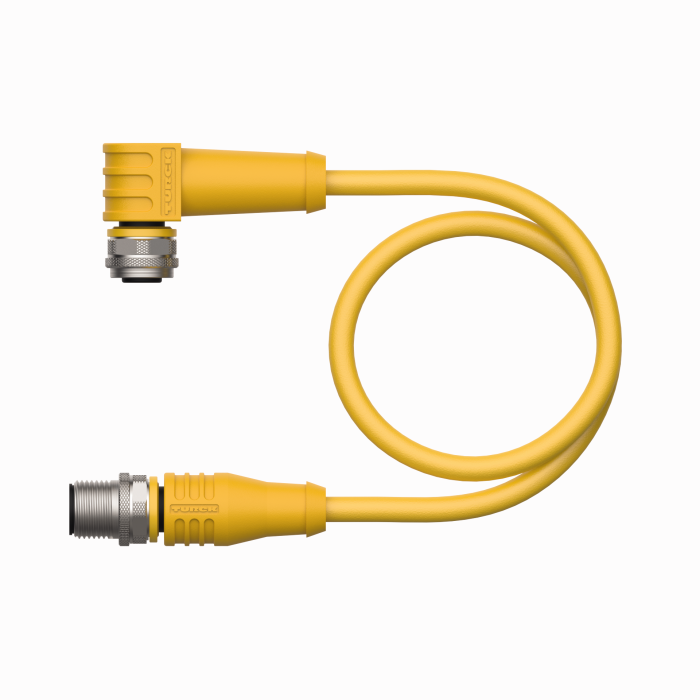

Actuator and Sensor Cable, PUR

WKS4.5T-1-RSS4.5T/TXY3013

Order ID no. 6631207

Cable length: 1
Application: Signal
Design: Extension Cable
Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 5
Coupling nut/screw material A: Brass
Connector B: Male, M12 × 1, Straight, A-coded
Number of Pins: 5
Coupling nut/screw material B: Brass
Voltage: 60
Current: 4
Cable quality: PUR
Cable color: Yellow
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min.: -25
Ambient temperature max.: 80
Core cross-section: 0.34
Number of Conductors: 5

In Stock
List Price	PLN 194.10
