Actuator and Sensor Cable, PUR

RKS8T-8-RKS8T/TXL

Order ID no. 6633489

Cable length: 8
Ambient temperature min.: -25
Ambient temperature max.: 80
Application: Signal
Number of Conductors: 8
Core cross-section: 0.25
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus

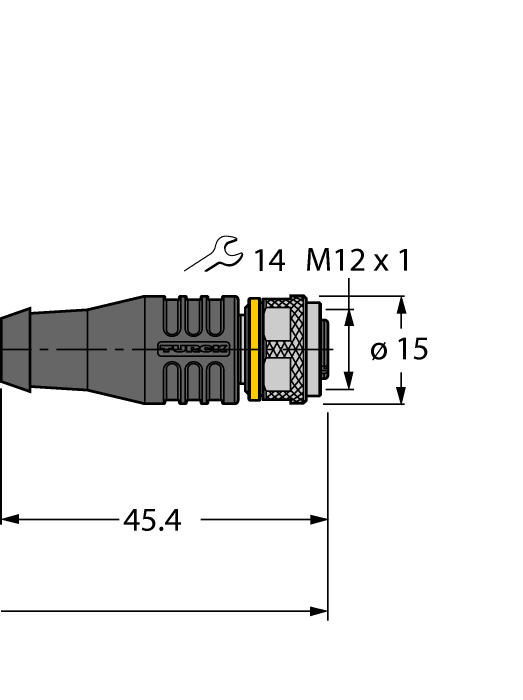

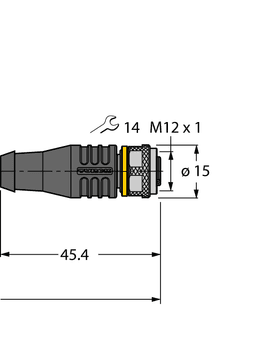

Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 8
Voltage: 30
Current: 2
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Design: Extension Cable
Connector B: Female, M12 × 1, Straight, A-coded
Number of Pins: 8
