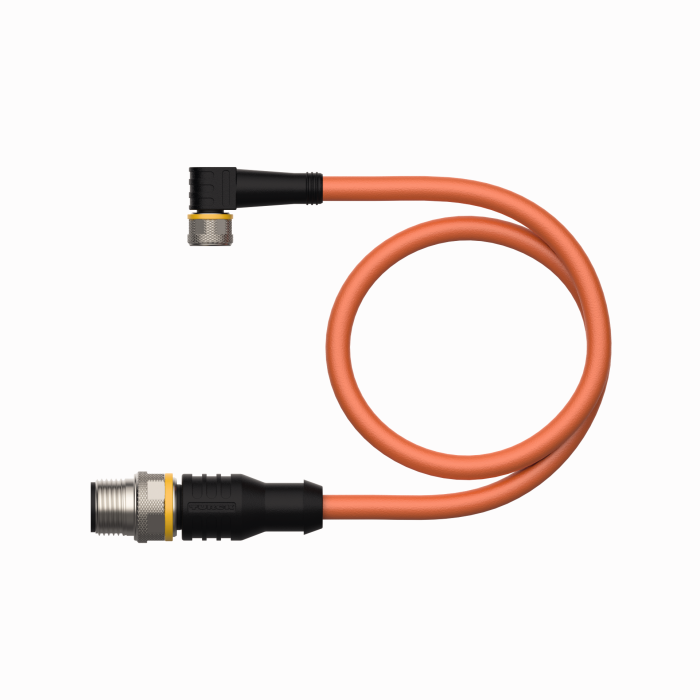

Actuator and Sensor Cable, PUR
PKW3M-1-RSC4T/TXO
Order ID no. 6635844| In Stock | |
| Price Group | H1 |
| List Price | PLN 88.99 |
Item TotalPLN 88.99
Quantity
- Cable length (m)
- 1
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 80
- Application
- Signal
- Number of Conductors
- 3
- Core cross-section (mm²)
- 0.34
- Cable quality
- PUR
- Cable color
- Orange
- Special features
- Suitable for drag chain use
- Approvals
- cULus

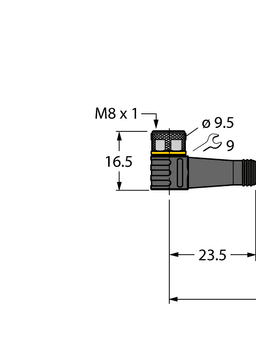

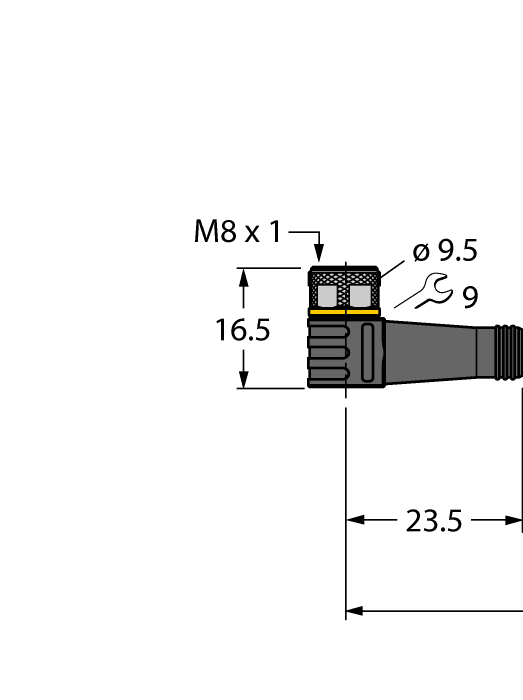

- Connector A
- Female, M8 × 1, Angled
- Number of Pins
- 3
- Current (A)
- 4
- Coupling nut/screw material A
- Brass
- Coupling nut/screw material B
- Brass
- Design
- Extension Cable
- Connector B
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 3
Key Features
- Cable length (m)
- 1
- Cable quality
- PUR
- Connector A
- Female, M8 × 1, Angled
- Connector B
- Male, M12 × 1, Straight, A-coded
