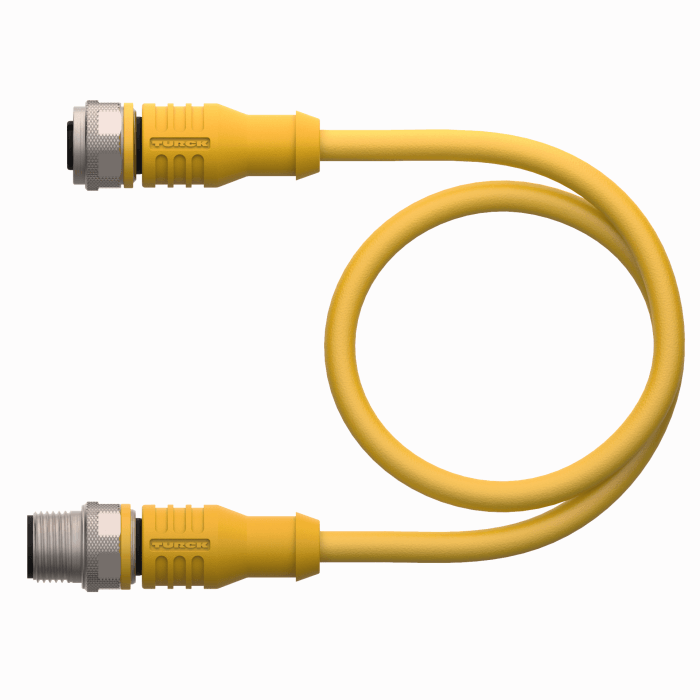

Actuator and Sensor Cable, PUR

RKC4.5T-20-RSC4.5T/TXY6713

Order ID no. 6636142

Cable length (m): 20
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Application: Signal
Number of Conductors: 5
Core cross-section (mm²): 0.34
Cable quality: PUR
Cable color: Yellow
Special features: AIDA, Resistant to welding sparks, Suitable for drag chain use
Approvals: cULus
Connector A: Female, M12 × 1, Straight, A-coded
Number of Pins: 5
Voltage (V): 60
Current (A): 4
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Design: Extension Cable
Connector B: Male, M12 × 1, Straight, A-coded
Number of Pins: 5
