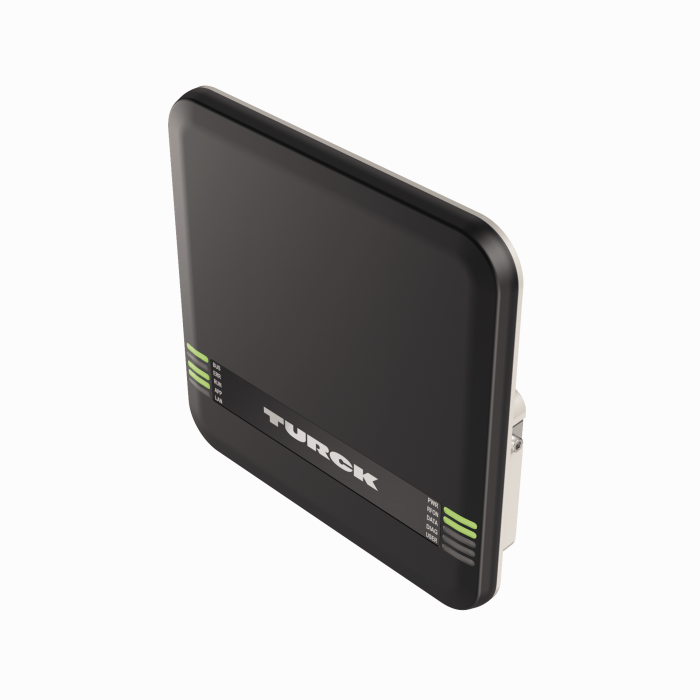

UHF Reader
TN-UHF-Q300-BRA-CDS
Order ID no. 100000915| In Stock | |
| List Price | PLN 9,516.53 |
Item TotalPLN 9,516.53
Quantity
- Programming
- CODESYS V3
- Protection class
- IP67
- Switching element function
- Read/Write
- Network protocol
- PROFINET, Modbus TCP, EtherNet/IP, TCP/IP
- Design
- Rectangular
- Connector type
- RP-TNC
- Housing material
- Aluminium
- Housing quality
- AL
- Ambient temperature min.
- -20
- Ambient temperature max.
- 50
- Region (UHF)
- Brazil (902…907.5 + 915…928 MHz)
- Mounting conditions
- Non-flush
- Operating voltage
- DC

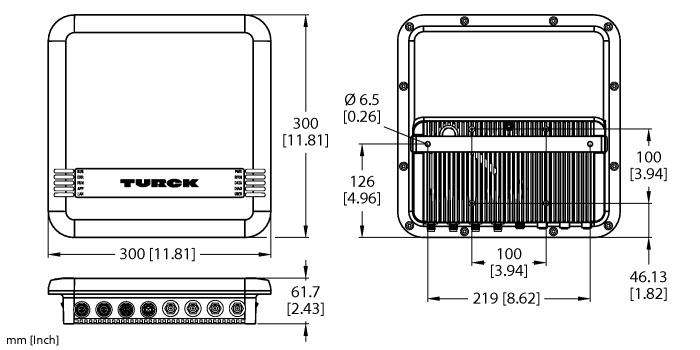

- Construction size
- 300 x 300 x 61.7 mm
- Connection technology Ethernet
- 1 x M12, 4-pin, D-coded
- Transmission rate Ethernet
- 10/100 Mbps
Key Features
- Network protocol
- PROFINET, Modbus TCP, EtherNet/IP, TCP/IP
- Programming
- CODESYS V3
- Protection class
- IP67
- Region (UHF)
- Brazil (902…907.5 + 915…928 MHz)
