PVA100N6R | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Pick-to-Light

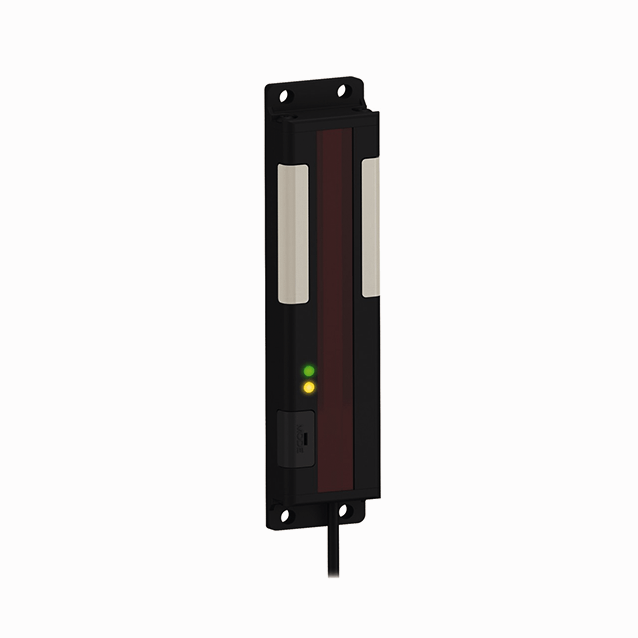

PVA100N6R
Order ID no. 3051909
home
Home
Loading...
Technical Data
Cable length (m)
2
Design
Rectangular
Protection class
IP62
Electrical connection
Cable
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
50
Max. range (mm)
2000
Switching element function
NO/NC
Function
Opposed mode sensor
Scan field (mm)
100
Optical resolution (mm)
25
Operating voltage
DC
Number of beams
5
Construction size

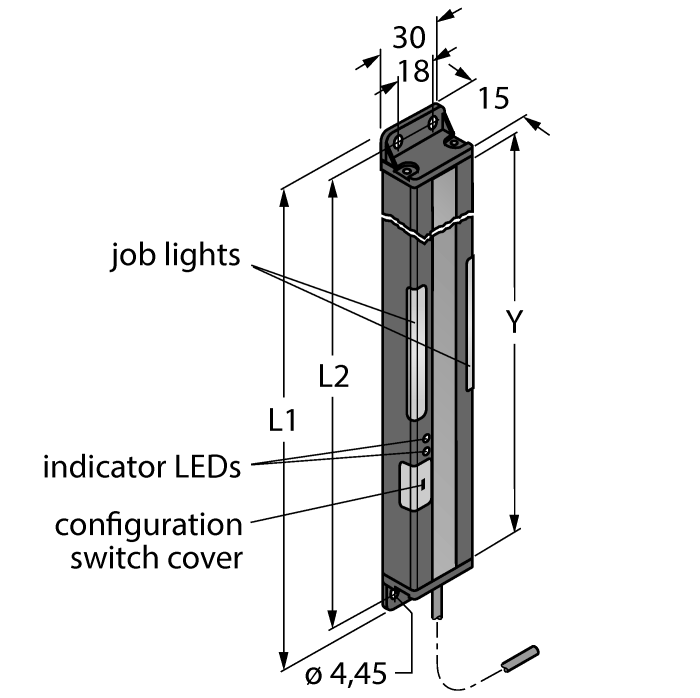

137.8 x 30 x 15 mm
Output function
NO/NC, NPN
Input type
Bipolar (PNP/NPN)
Number of colors/segments
1
Key Features
Scan field (mm)
100
Number of colors/segments
1
home
Turck-Shop
Lighting and Indicators
Pick-to-Light
PVA100N6R
In Stock
Price Group
F3
List Price
PLN 1,854.47
Item Total
PLN 1,854.47
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
