Light Screen for Machine Safety Applications
LS2TR30-1350Q8
Order ID no. 3073542In Stock | |
List Price | PLN 8,884.81 |
Item TotalPLN 8,884.81
Quantity
- Protection class
- IP65
- Switching element function
- 2 x NC contact
- Design
- Rectangular
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min.
- 0
- Ambient temperature max.
- 55
- Max. range
- 15000
- Function
- Light screen
- Scan field
- 1350
- Optical resolution
- 30
- Construction size

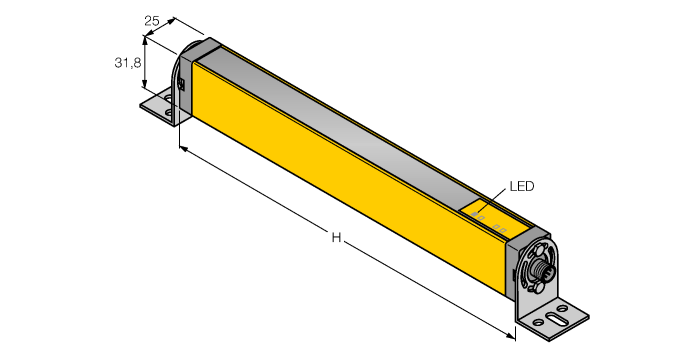

- 31.8 x 25.2 x 1414 mm
- Cascadable
- No
- Output function
- 2 x NC contact, 2 × PNP
- Start/Restart interlock
- no
- With muting function
- No
- Number of beams
- 72
Key Features
- Cascadable
- No
- Scan field
- 1350
- Optical resolution
- 30
- Number of beams
- 72
