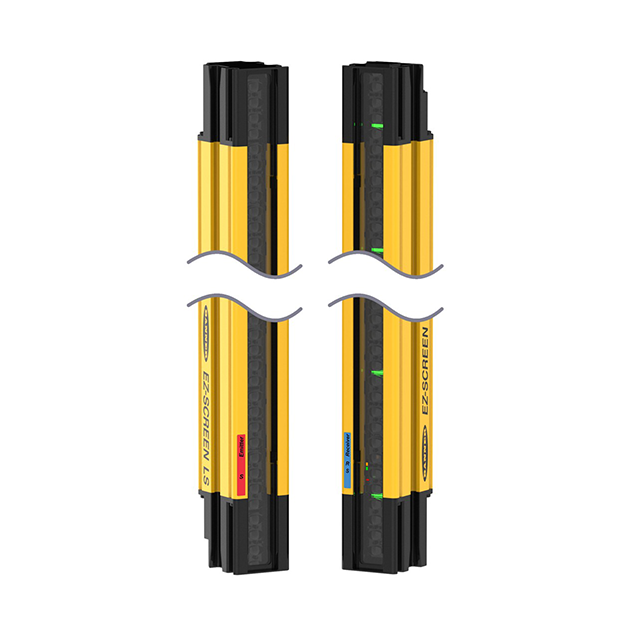

Safety Light Curtain
SLLCP40-770P88
Order ID no. 3089788| In Stock | |
| Price Group | G1 |
| List Price | PLN 13,524.01 |
Item TotalPLN 13,524.01
Quantity
- Cable length (m)
- 0.3
- Design
- Rectangular
- Protection class
- IP65, IP67
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- -20
- Ambient temperature max. (°C)
- 55
- Max. range (mm)
- 12000
- Switching element function
- 2 x NO contact
- Function
- Light screen
- Scan field (mm)
- 770
- Optical resolution (mm)
- 40
- Light type
- IR
- Cascadable
- Yes
- With muting function
- No
- Start/Restart interlock
- no
- Number of beams
- 22
- Output function
- 2 x NO contact, 2 × PNP
Key Features
- Cascadable
- Yes
- Scan field (mm)
- 770
- Optical resolution (mm)
- 40
- Number of beams
- 22
