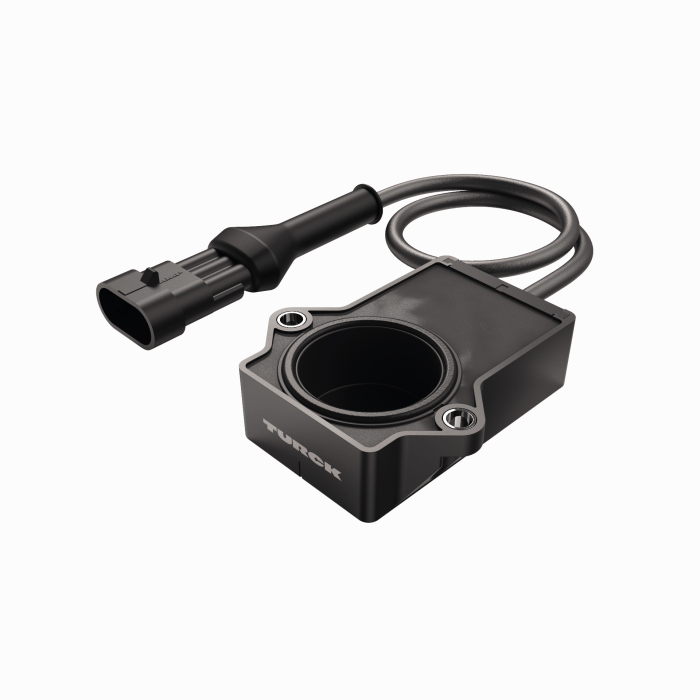

Miniature Encoder
RI240P1-QR20-LU4X2-0.24-AMP01-3P
Order ID no. 100000200
home
Home
Loading...
Technical Data
Cable length (m)
0.24
Design
Rectangular
Protection class
IP68, IP69K
Electrical connection
Cable with connector
Connector type
AMP Superseal
Housing material
Plastic
Housing quality
Ultem
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Inductive
Operating voltage
DC
Measuring range
-120…120°
Output function
, Analog output
Output type
Absolute singleturn
Flange type
Flange without mounting element
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
6, 6.35
Key Features
Output type
Absolute singleturn
Shaft diameter D (mm)
6, 6.35
Shaft Type
Blind hole shaft
