REI-10S10S-2B2500-H1181 | TURCK - Your Global Automation Partner

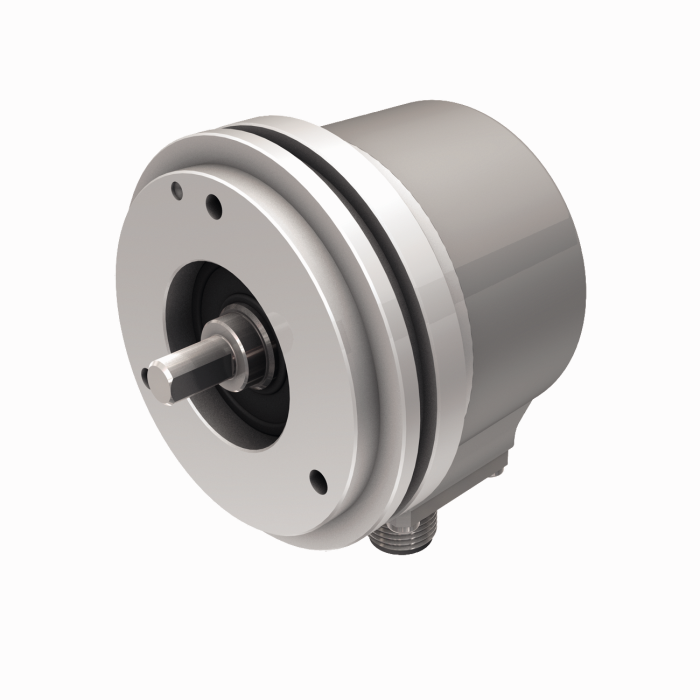

Incremental Encoder
REI-10S10S-2B2500-H1181
Order ID no. 100010302
home
Home
Loading...
Technical Data
Protection class
IP67
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Optical
Output function
, Push-Pull/HTL
Output type
Incremental
Flange type
Synchro flange
Resolution incremental (ppr)
2500
Shaft Type
Solid shaft
Flange diameter (mm)
58
Shaft diameter D (mm)
10
Key Features
Output type
Incremental
Flange diameter (mm)
58
Shaft diameter D (mm)
10
Shaft Type
Solid shaft
home
Turck-Shop
Sensors
Encoders
REI-10S10S-2B2500-H1181
Item Total
PLN 1,618.61
Quantity
−
+
add_shopping_cart
Add to Cart
In Stock
List Price
PLN 1,618.61
