RI360P0-QR24M0-CNX4-2H1150 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

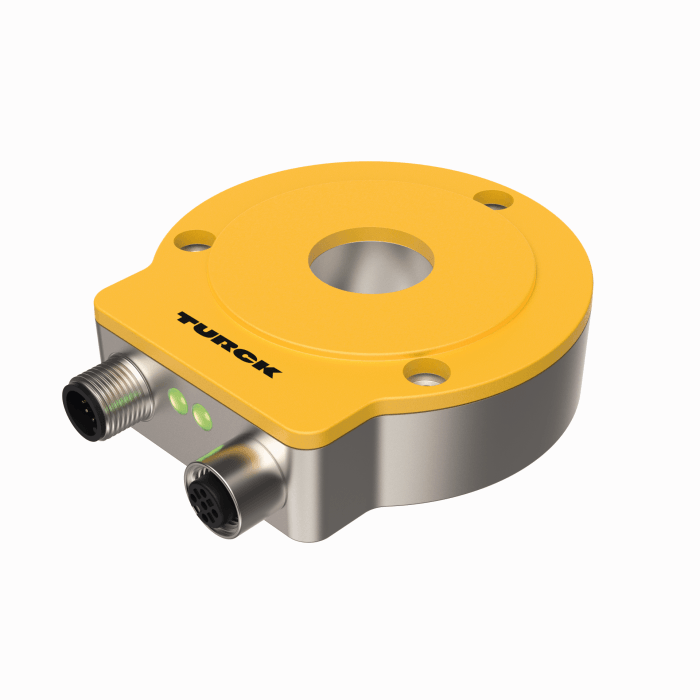

Contactless Encoder
RI360P0-QR24M0-CNX4-2H1150
Order ID no. 1590914
In Stock
Price Group
G1
List Price
PLN 2,269.09
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Communication protocol
CANopen
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal/plastic
Housing quality
ZnAlCu1/PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
85
Measuring principle
Inductive
Operating voltage
DC
Output type
Absolute singleturn
Shaft Type
Hollow shaft
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Flange type
Flange without mounting element
Measuring range
0…360°
Key Features
Output type
Absolute singleturn
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Shaft Type
Hollow shaft
