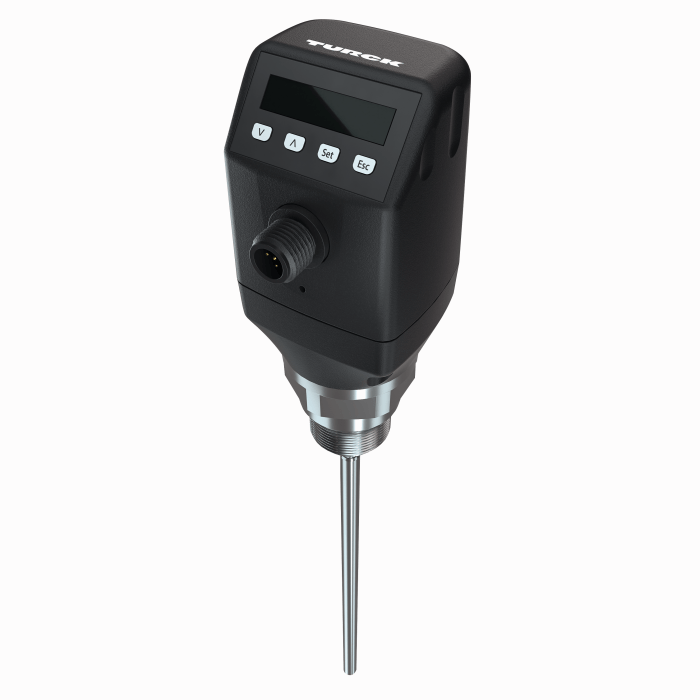

Level Sensor
LS-534-0500-LIU24PN8X-H1181
Order ID no. 100001863| In Stock | |
| List Price | PLN 2,510.57 |
Item TotalPLN 2,510.57
Quantity
- Protection class
- IP67
- Switching element function
- NO/NC
- Approvals
- UL
- Design
- With display
- Process connection
- 3/4″ NPT male thread
- Medium
- liquids
- Detection type
- medium contact
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PBT
- Media temperature min.
- -20
- Media temperature max.
- 100
- Ambient temperature min.
- -20
- Ambient temperature max.
- 60
- Measuring principle
- Guided microwave
- Operating voltage
- DC
- Output function
- NO/NC, PNP/NPN, analog output
- Measuring range
- 500 mm
Key Features
- Communication protocol
- IO-Link
- Measuring range
- 500 mm
- Process connection
- 3/4″ NPT male thread
