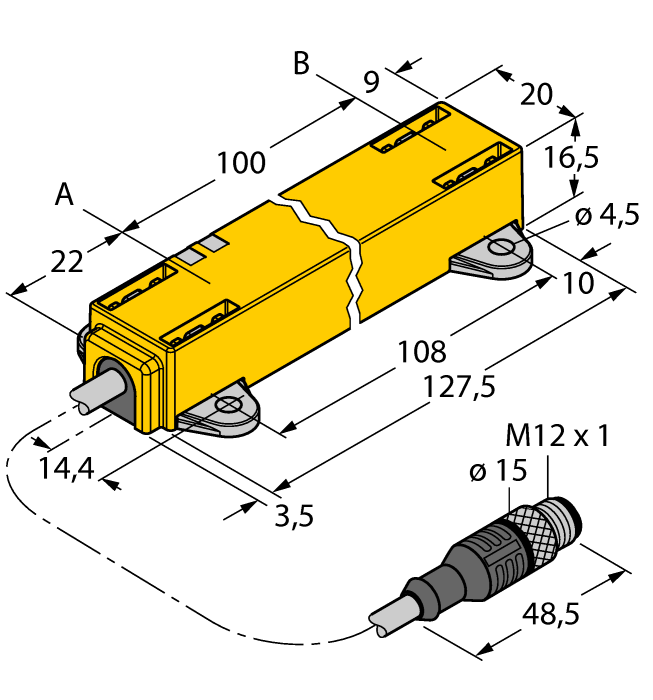

Inductive Linear Position Sensor
LI100P1-Q17LM1-LU4X2-0.3-RS5/S97
Order ID no. 1590742In Stock | |
Price Group | F1 |
List Price | PLN 1,526.53 |
Item TotalPLN 1,526.53
Quantity
- Cable length (m)
- 0.3
- Design
- Profile
- Protection class
- IP67
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PC-GF10
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Measuring principle
- Inductive
- Operating voltage
- DC
- Measuring range
- 100…0.0 mm
- Output function
- , Analog output
- Measuring range (mm)
- 100
Key Features
- Electrical connection
- Cable with connector
- Measuring range (mm)
- 100
