Magnetic Field Sensor

BIM-IKT-AP6X-V1131

Order ID no. 46220

Design: Rectangular
Protection class: IP67
Electrical connection: Connector
Connector type: M8 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Switching element function: NO contact
Operating voltage: DC

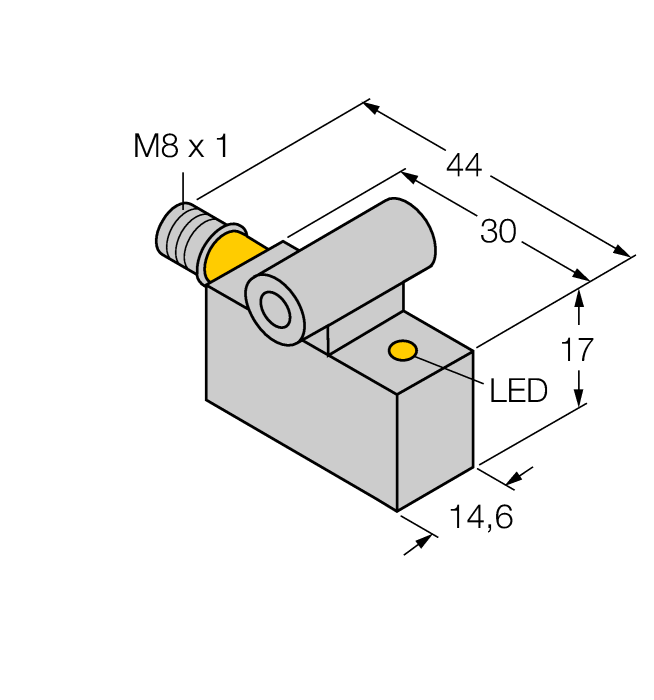

Construction size: 30 x 14.6 x 17 mm
Output function: NO contact, PNP
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
