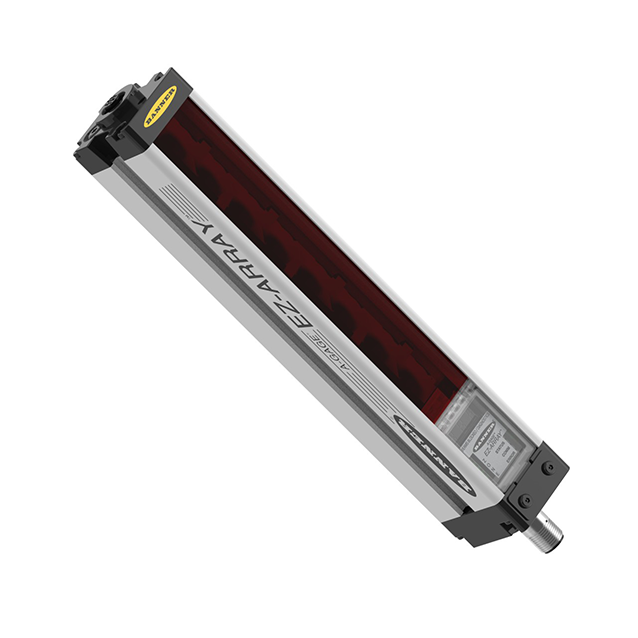

Measuring Light Screen
EA5R1050PUXMODQ
Order ID no. 3077544| In Stock | |
| List Price | PLN 9,083.49 |
Item TotalPLN 9,083.49
Quantity
- Protection class
- IP65
- Switching element function
- 2 x NO contact
- Design
- Rectangular
- Communication protocol
- Modbus RTU, RS485
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min.
- -40
- Ambient temperature max.
- 70
- Max. range
- 4000
- Function
- Light screen
- Scan field
- 1050
- Optical resolution
- 5
- Construction size

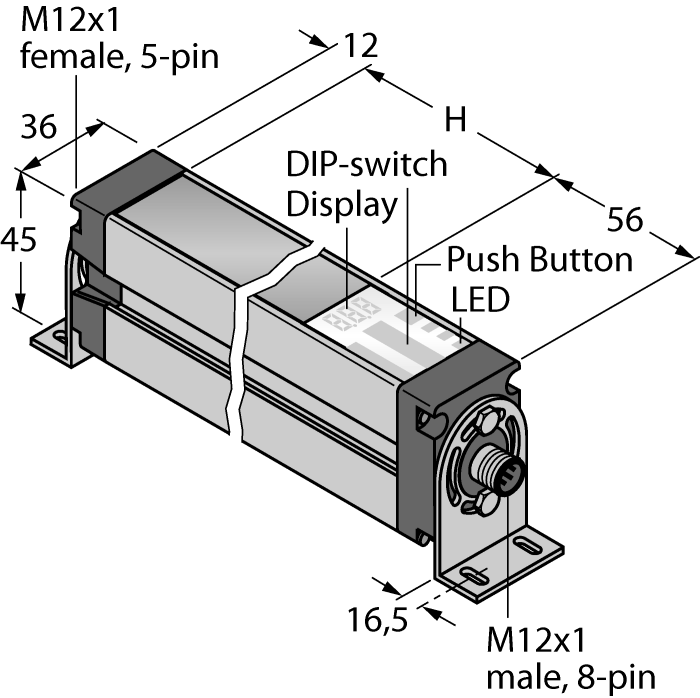

- 45.2 x 36 x 1128 mm
- Output function
- 2 x NO contact, PNP/Analog output
- Number of beams
- 210
Key Features
- Function
- Light screen
- Max. range
- 4000
