Pressure Transmitter

PT600R-2104-U6-H1143

Order ID no. 100000756

Protection class: IP69K
Approvals: cULus
Design: Without display

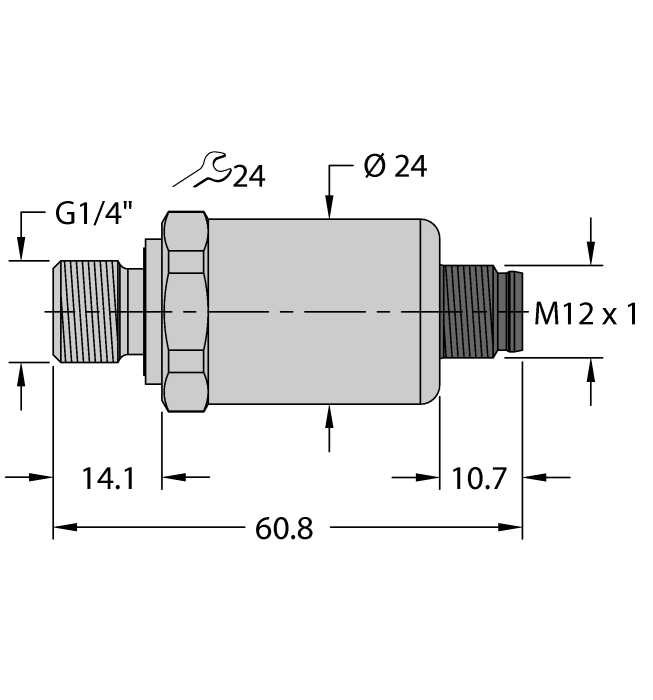

Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min.: -40
Media temperature max.: 125
Ambient temperature min.: -40
Ambient temperature max.: 100
Operating voltage: DC
Electrical output: Voltage output (3-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Output function: , ratiom. 10…90%
Pressure range: 0…600 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…600 bar

In Stock
List Price	PLN 679.61
