Pressure Transmitter

PT400R-2020-U3-H1143/X

Order ID no. 100000761

In Stock
List Price	PLN 642.42

Protection class: IP67
Approvals: cULus
Design: Without display

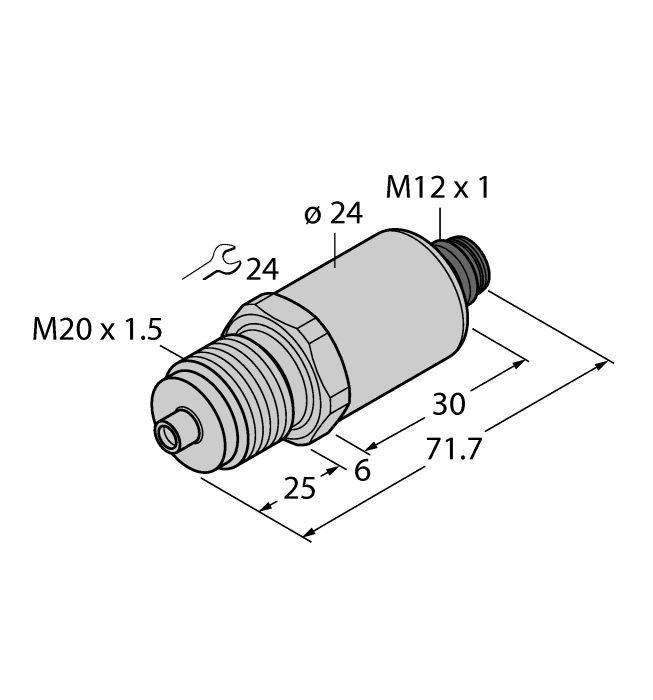

Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 135
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Voltage output (3-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Output function: , Analog output voltage
Pressure range: 0…400 bar

Electrical output: Voltage output (3-wire)
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Pressure range: 0…400 bar
