Pressure Transmitter

PT400R-2104-U1-H1143

Order ID no. 100004068

Design: Without display

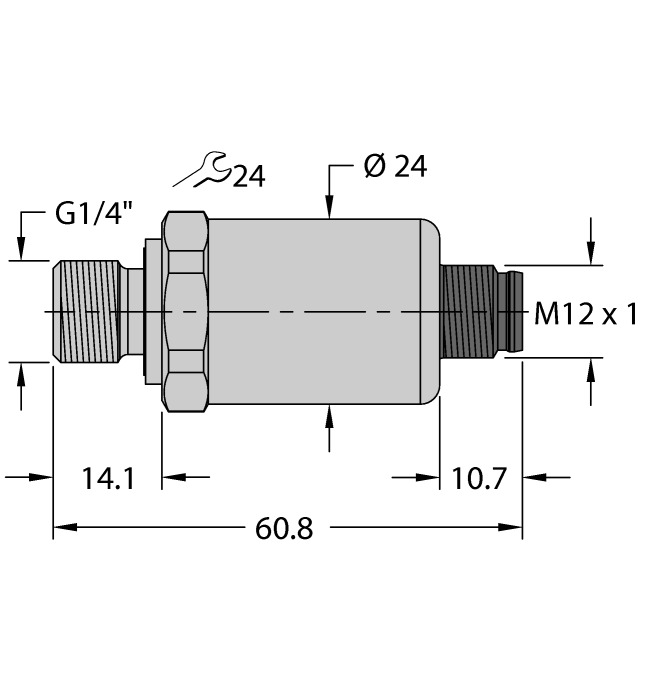

Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Protection class: IP69K
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Approvals: cULus
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Operating voltage: DC
Output function: , Analog output voltage
Pressure range: 0…400 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…400 bar
