Pressure Transmitter

PT16A-1020-I2-DA91

Order ID no. 100005511

In Stock
List Price	PLN 583.83

Protection class: IP65
Approvals: cULus
Design: Without display

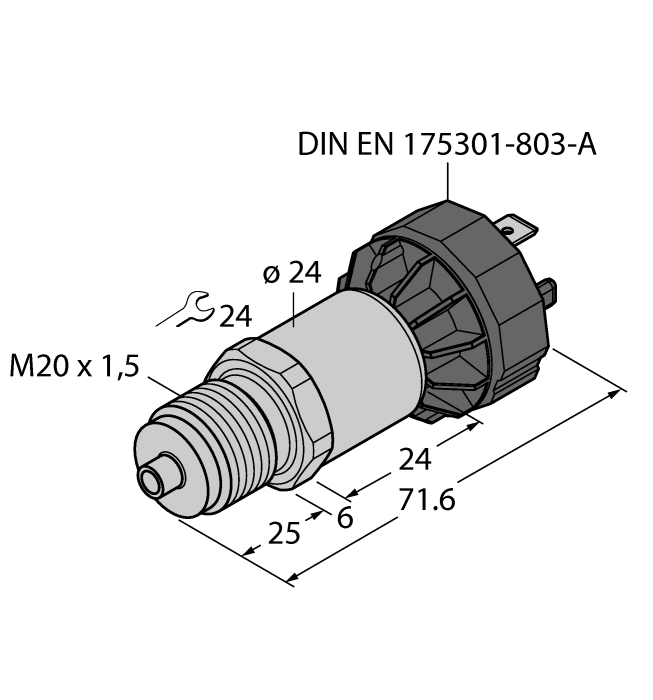

Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Absolute pressure
Material pressure transducer: Ceramic Al₂O₃
Output function: , Analog output current
Pressure range: 0…16 bar

Electrical output: Current output (2-wire)
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Pressure range: 0…16 bar
