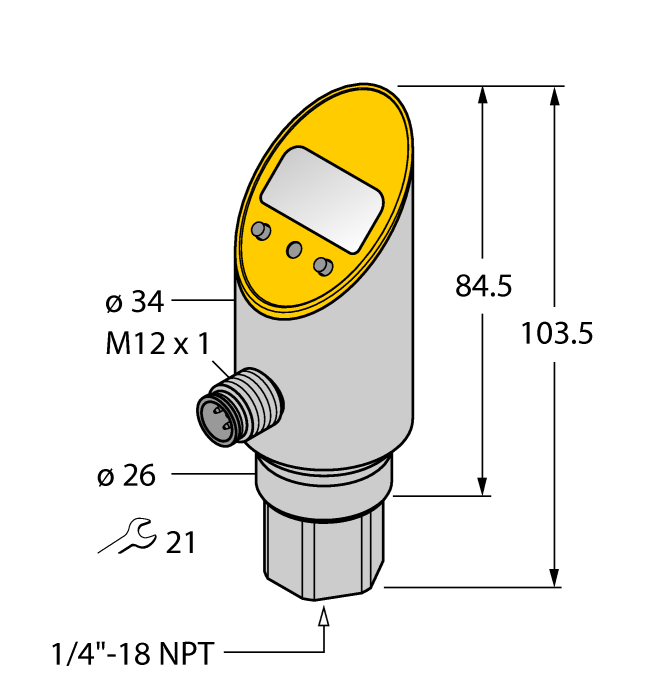

Pressure sensor
PS025V-302-LI2UPN8X-H1141
Order ID no. 6833342
home
Home
Loading...
Technical Data
Protection class
IP67, IP69K
Switching element function
NO/NC
Approvals
cULus
Design
With display
Process connection
1/4″ NPT-18 female thread
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4305 (AISI 303)
Media temperature min.
-40
Media temperature max.
85
Ambient temperature min.
-40
Ambient temperature max.
80
Operating voltage
DC
Electrical output
Current output (3-wire), 2 × switching output
Pressure type
Relative pressure
Material pressure transducer
Ceramic Al₂O₃
Output function
NO/NC, PNP/NPN
Pressure range
-1…25 bar
Key Features
Communication protocol
IO-Link
Electrical output
Current output (3-wire), 2 × switching output
Process connection
1/4″ NPT-18 female thread
Pressure range
-1…25 bar
home
Turck-Shop
Sensors
Pressure Sensors
PS025V-302-LI2UPN8X-H1141
Item Total
PLN 2,258.39
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
In Stock
List Price
PLN 2,258.39
