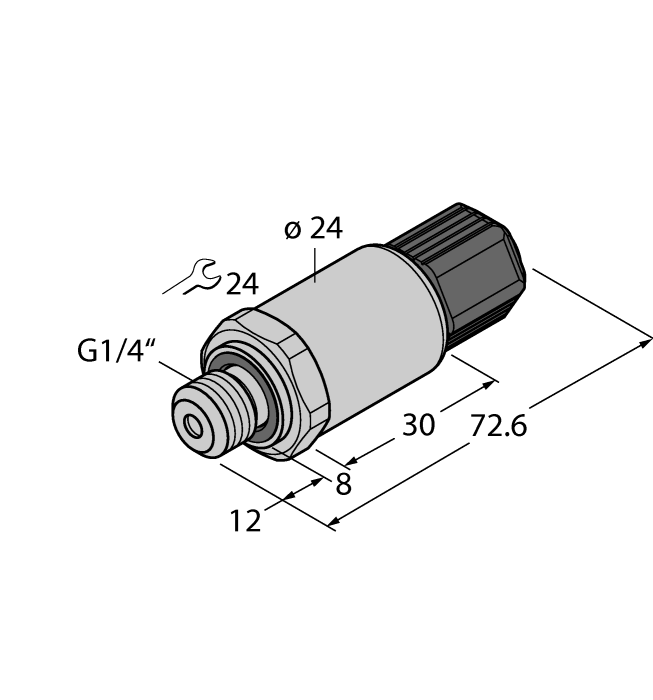

Pressure Transmitter

PT10R-2004-I2-TC11

Order ID no. 6837709

In Stock
List Price	PLN 642.42

Protection class: IP67
Approvals: cULus
Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Cable gland
Connector type: PG 9
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 135
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4016 (AISI 430)
Output function: , Analog output current
Pressure range: 0…10 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…10 bar
