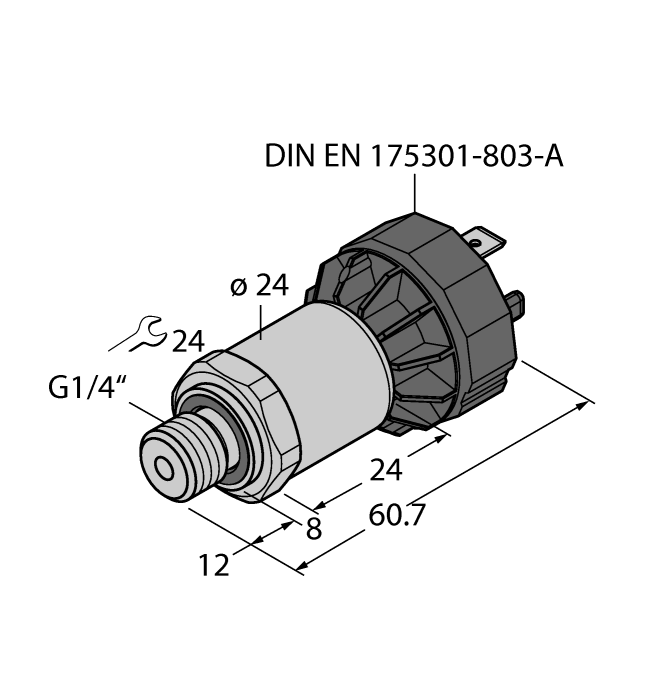

Pressure Transmitter

PT2.5V-1004-I2-DA91

Order ID no. 6837784

Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Current output (2-wire)
Protection class: IP65
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Approvals: cULus
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Output function: , Analog output current
Pressure range: -1…2.5 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: -1…2.5 bar
