Radar Sensor
MR15-Q80-IOLCJ-H1141
Order ID no. 100041054
home
Home
Loading...
Technical Data
Detection type
contactless
Design
Rectangular
Communication protocol
IO-Link, SAE J1939
Protection class
IP67, IP68, IP69K
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF20, Die-cast aluminum alloy
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Max. range (mm)
15000
Beam angle
120°
Measuring principle
Radar
Switching element function
NO/NC programmable
Function
Radar scanner
Operating voltage
DC

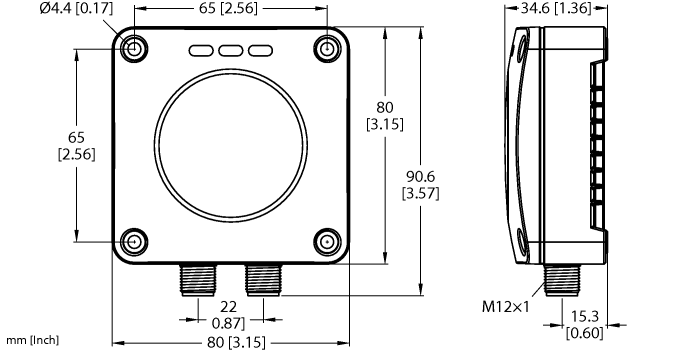

Construction size
90.6 x 80 x 34.6 mm
Output function
NO/NC programmable, PNP/NPN
Key Features
Electrical connection
Connector
Max. range (mm)
15000
Beam angle
120°
