Radar Sensor
MR15-Q80-IOLCJ-H1141
Order ID no. 100041054
In Stock
Price Group
G1
List Price
PLN 4,286.18
Item Total
PLN 4,286.18
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Detection type
contactless
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Cone angle (°)
120
Communication protocol
IO-Link, SAE J1939
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

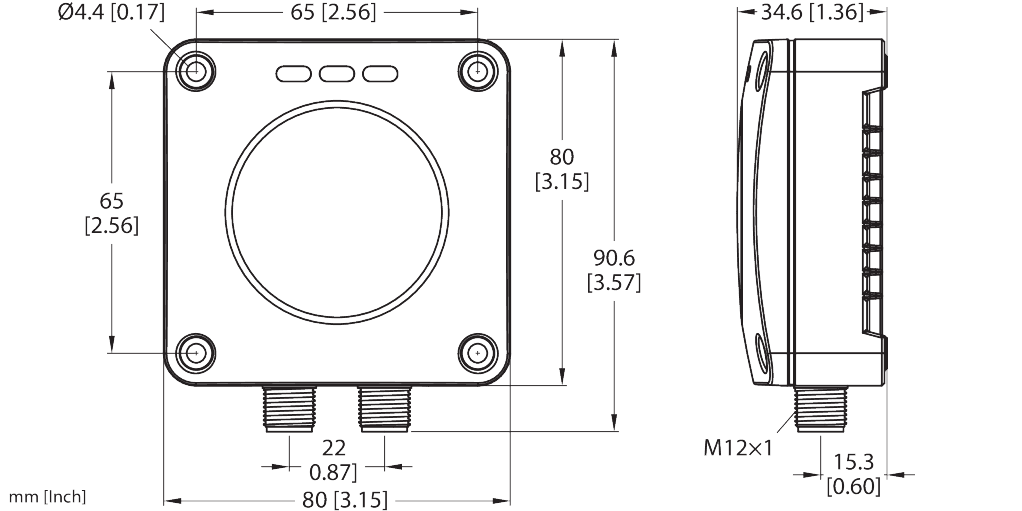

Dimensions
90,6 mm x 80 mm x 34,6 mm
Frequency range
60–64 GHz
Housing material
Plastic
Housing quality
PBT-GF20, Die-cast aluminum alloy
Function
Radar scanner
Operating voltage
DC
Measuring principle
Radar
Protection class
IP67, IP68, IP69K
Beam angle
120°
Max. range (mm)
15000
Resolution
1 cm
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Beam angle
120°
Max. range (mm)
15000
