TTMS-203A-CF-LIUPN-H1140-L300 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Temperature Detection

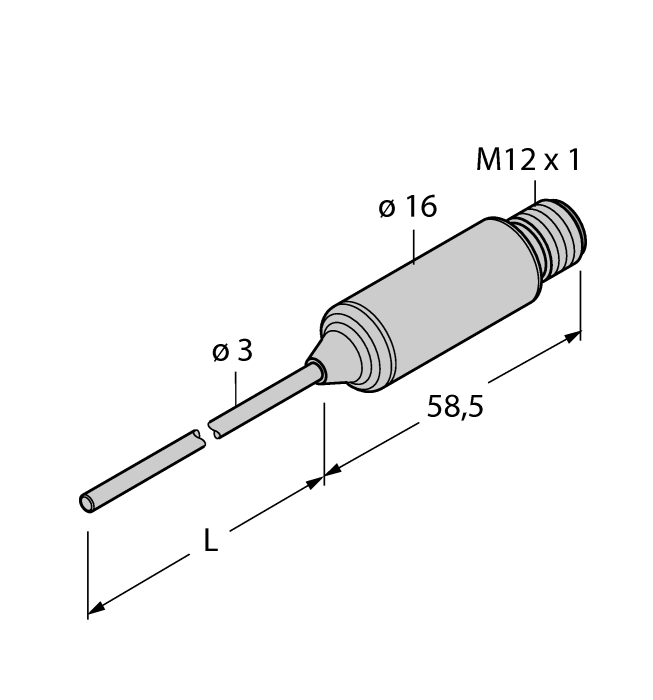

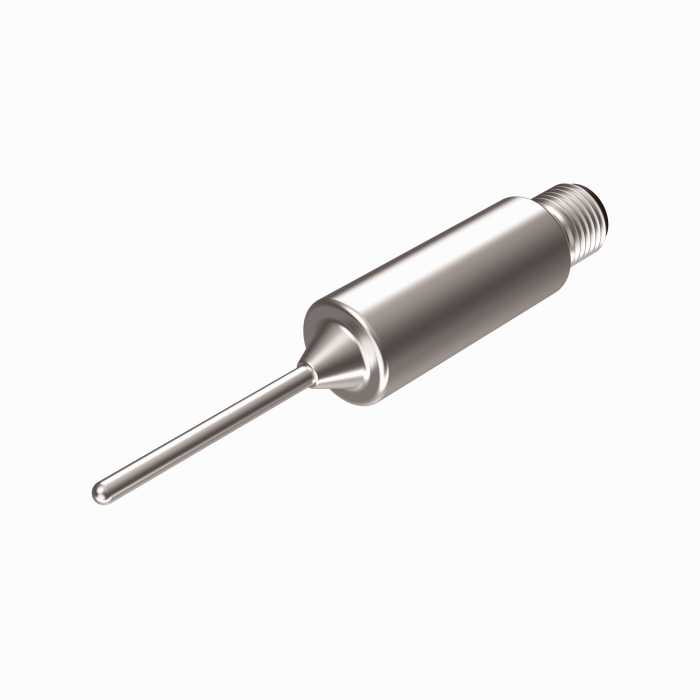

TTMS-203A-CF-LIUPN-H1140-L300
Order ID no. 100042175
home
Home
Loading...
Technical Data
Detection type
medium contact
Design
Without display (integrated probe)
Immersion depth L (mm)
300
Process connection
For compression fittings, thermowell or direct mounting
Electrical output
Current output (2-wire), Switching output
Communication protocol
IO-Link
Protection class
IP67
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Switching element function
NO/NC programmable
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
NO/NC programmable, PNP/NPN
Measuring range
-50…350 °C
Key Features
Communication protocol
IO-Link
Electrical output
Current output (2-wire), Switching output
Process connection
For compression fittings, thermowell or direct mounting
Measuring range
-50…350 °C
