Temperature Detection

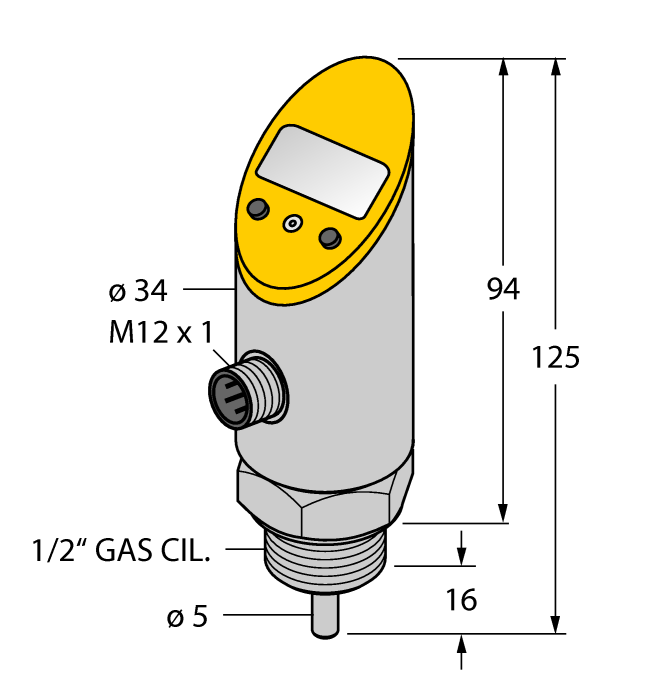

TS-516-LI2UPN8X-H1141-L016
Order ID no. 6840026
home
Home
Loading...
Technical Data
Detection type
medium contact
Design
With display (integrated probe)
Immersion depth L (mm)
16
Process connection
G 1/2″ male thread
Electrical output
Current output (3-wire), Switching output
Communication protocol
IO-Link
Protection class
IP67, IP69K
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Switching element function
NO/NC programmable
Operating voltage
DC
Output function
NO/NC programmable, PNP/NPN
Measuring range
-50…150 °C
Key Features
Communication protocol
IO-Link
Electrical output
Current output (3-wire), Switching output
Process connection
G 1/2″ male thread
Measuring range
-50…150 °C
home
Turck-Shop
Sensors
Temperature Sensors
TS-516-LI2UPN8X-H1141-L016
Item Total
PLN 2,029.81
Quantity
−
+
add_shopping_cart
Add to Cart
In Stock
Price Group
D2
List Price
PLN 2,029.81
