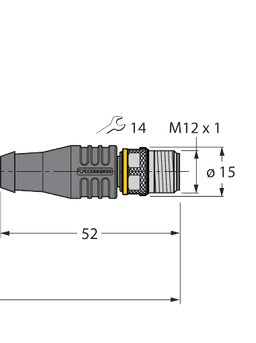

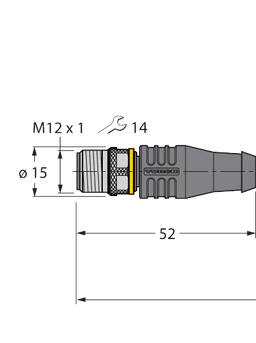

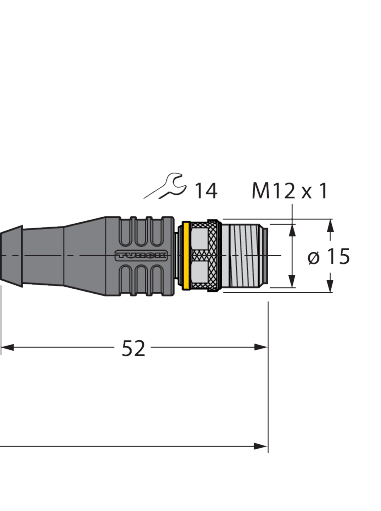

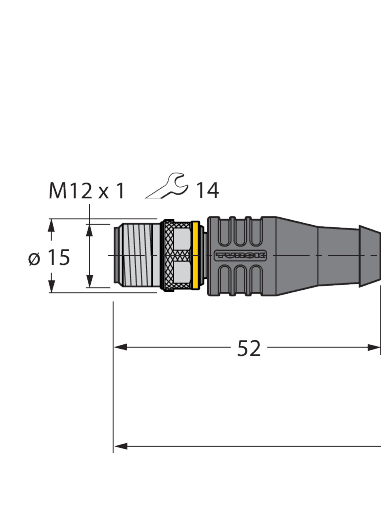

Actuator and Sensor Cable, PUR

RSS4.4T-30-RSS4.4T/TXL

Order ID no. 6632823

Current (A): 4
Voltage (V): 30
Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Approvals: CE
Cable color: Black
Core cross-section (mm²): 0.34
Cable diameter (mm): 5.3
Cable length (m): 30
Cable quality: PUR
Plug body: Plastic
Coupling nut/screw material A: Brass
Number of pins: 4
Coupling nut/screw material B: Brass
Number of Pins: 4
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Application: Signal
Design: Extension Cable
