WSC-WSC5701-0.5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Bus Cable for CAN (DeviceNet, CANopen)

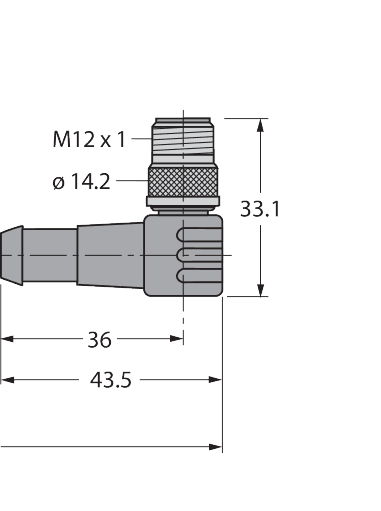

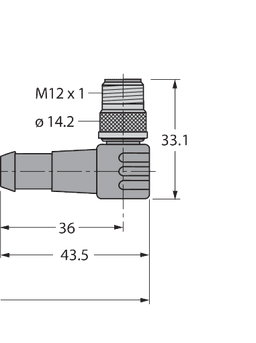

WSC-WSC5701-0.5M
Order ID no. 6931128
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-25
Application
Data
Approvals
UL
Cable color
Anthracite
Cable diameter (mm)
6.7
Cable length (m)
0.5
Cable quality
PUR
Core cross-section (mm²)
0.25
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Network protocol
CANopen, DeviceNet
Number of pins
5
Number of Pins
5
Plug body
Plastic
Voltage (V)
60
home
Turck-Shop
Connectivity
Cordsets
WSC-WSC5701-0.5M
Key Features
Cable length (m)
0.5
Cable quality
PUR
In Stock
Price Group
K1
List Price
PLN 157.51
Item Total
PLN 157.51
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
