BS5231-0 | TURCK - Your Global Automation Partner
Field-Wireable Connector

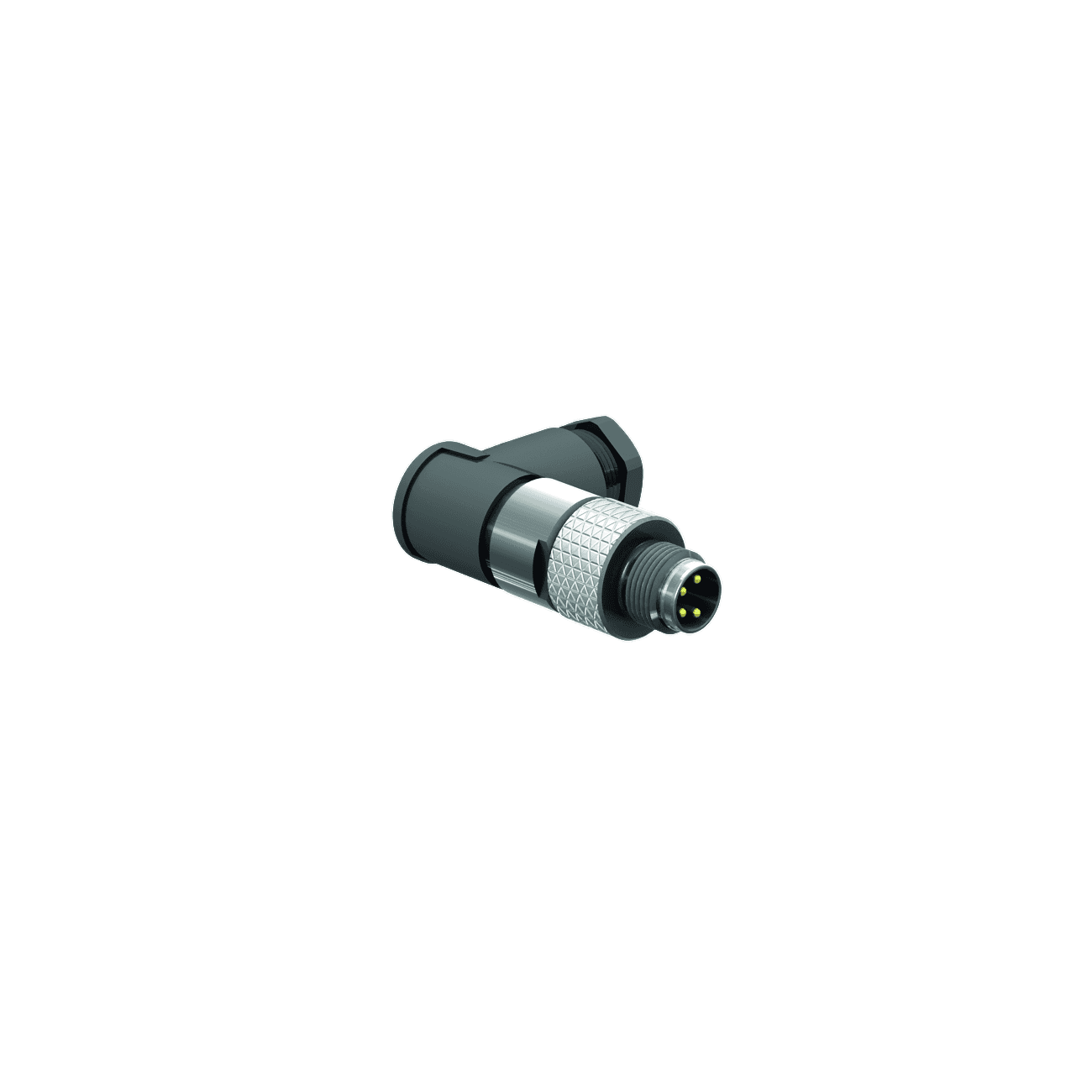

BS5231-0
Order ID no. 6901110
home
Home
Loading...
Technical Data
Downloads
Current (A)
4
Voltage (V)
60
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Approvals
cULus recognized
Plug body
Plastic
Connection mode
Solder contact
Coupling nut/screw material A
Die-cast Zinc
Number of pins
3
Screw-in thread
M11 x 0.75
Application
Signal
Cross-sectional connection max. (mm²)
0.25 mm²
Device type
Field-wireable connector
home
Turck-Shop
Connectivity
Field-wireable Connectors
BS5231-0
Key Features
Connection mode
Solder contact
Number of pins
3
Application
Signal
In Stock
Price Group
K2
List Price
PLN 54.52
Item Total
PLN 54.52
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
