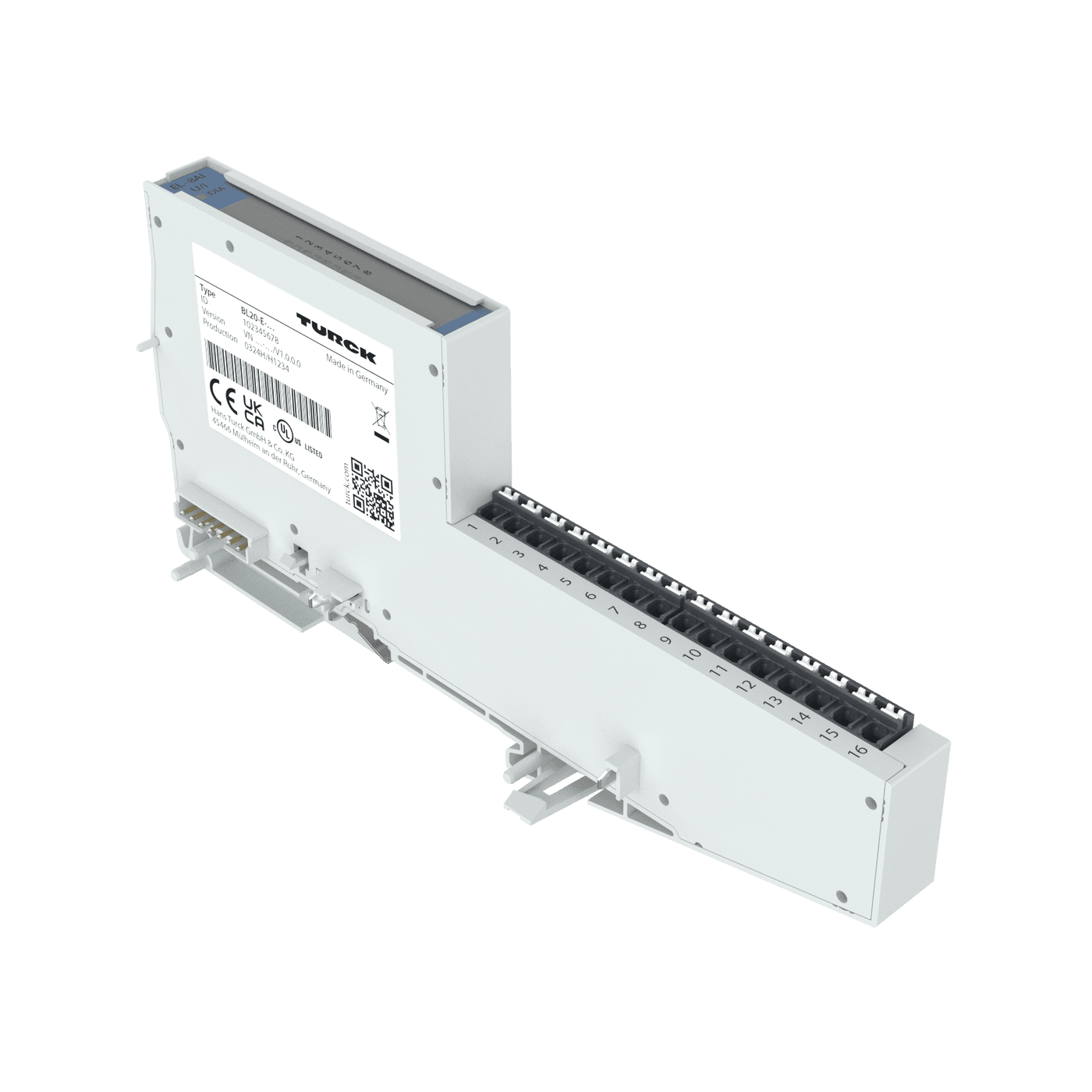

BL20 Efficiency Line Module 8 Analog Inputs U/I (2-Wire)

BL20-EL-8AI-U/I

Order ID no. 100052131

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): 0
Approvals: CE, cULus
Connection technology signal: Cage clamp terminal
Dimensions: 160,8 mm x 13 mm x 74,6 mm
Input type: 0/4...20 mA, -10/0...10 VDC, Pt100, Pt200, Pt500, Pt1000, NI100, NI1000, 0...250 Ω, 0...400 Ω, 0...800 Ω, 0...2000 Ω, 0...4000 Ω
Number of channels: 8/4
Operating voltage: DC
Protection class: IP20
Signal type: Analog input, Temperature
