piconet Coupling Module for DeviceNet
SDNL-0404D-1004
Order ID no. 6824453
In Stock
Price Group
D1
List Price
PLN 2,176.91
Item Total
PLN 2,176.91
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Fieldbus Technology
I/O Systems
SDNL-0404D-1004
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M12

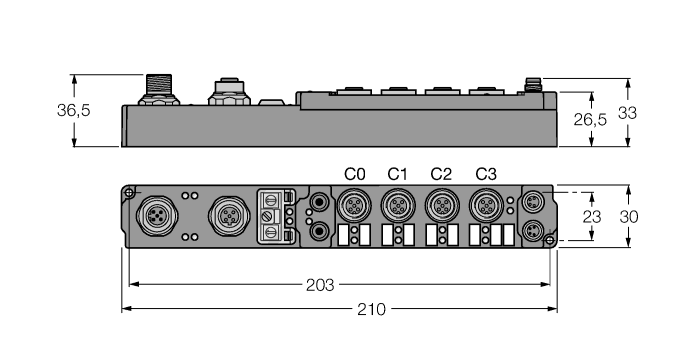

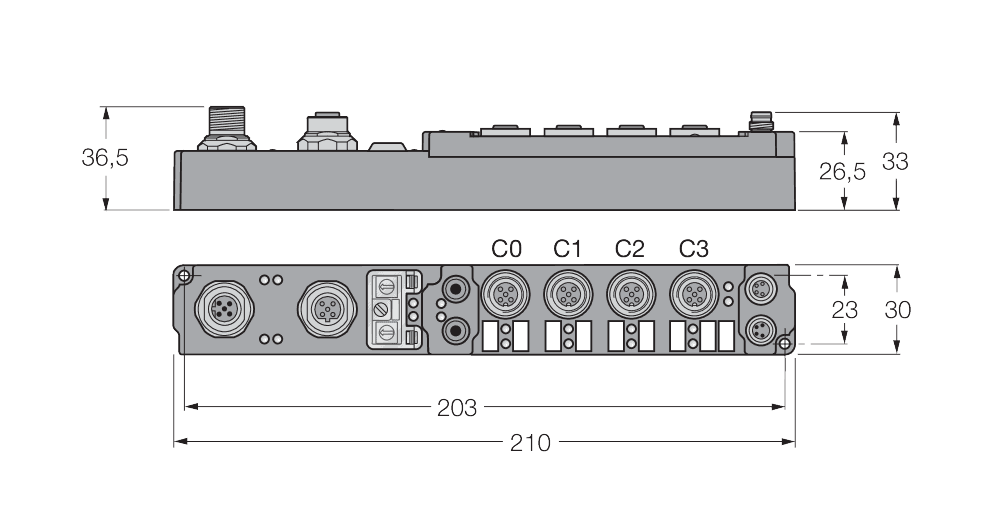

Dimensions
210 mm x 30 mm x 26,5 mm
Network protocol
DeviceNet
Fieldbus connection technology
2 x M12
Fieldbus transmission rate
125/250/500 kbps
Number of channels
8
Operating voltage
DC
Output voltage
20…29 VDC from load voltage
Voltage supply connection
2 x M8
Device type
Coupler, Gateway
Protection class
IP67
Signal type
Digital output, Digital input, Digital input/output
Key Features
Connection technology signal
M12
Network protocol
DeviceNet
Protection class
IP67
Signal type
Digital output, Digital input, Digital input/output
