piconet Extension Module for IP-Link

SNNE-0016D-0002

Order ID no. 6824476

Item TotalPLN 921.35

Quantity

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): 0
Approvals: cULus
Connection technology signal: D-Sub

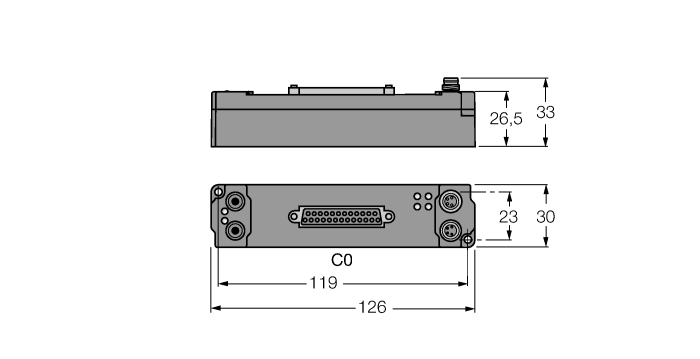

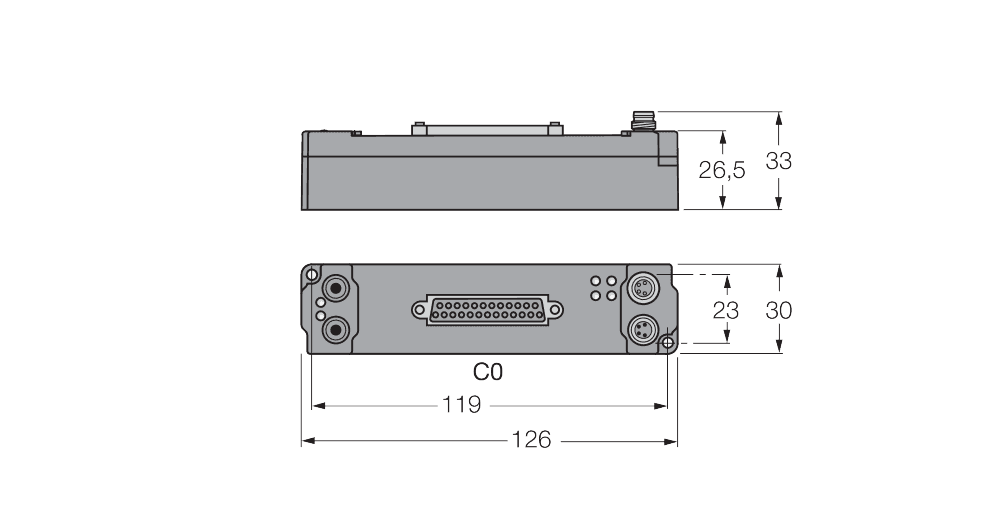

Dimensions: 126 mm x 30 mm x 26,5 mm
Network protocol: PROFIBUS-DP, DeviceNet, CANopen, Modbus TCP, EtherNet/IP, PROFINET
Number of channels: 16
Operating voltage: DC
Output voltage: 20…29 VDC from load voltage
Voltage supply connection: 2 x M8
Device type: Extension module
Protection class: IP20
Signal type: Digital output

Connection technology signal: D-Sub
Network protocol: PROFIBUS-DP, DeviceNet, CANopen, Modbus TCP, EtherNet/IP, PROFINET
Protection class: IP20
Signal type: Digital output
