excom I/O System
MT16-N
Order ID no. 9100686
In Stock
Price Group
D1
List Price
PLN 5,442.28
Item Total
PLN 5,442.28
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
ATEX, CE, cFM, cFMus, IECEx
Connection technology signal
Cage clamp terminal, Screw terminal
Device type
Module Racks

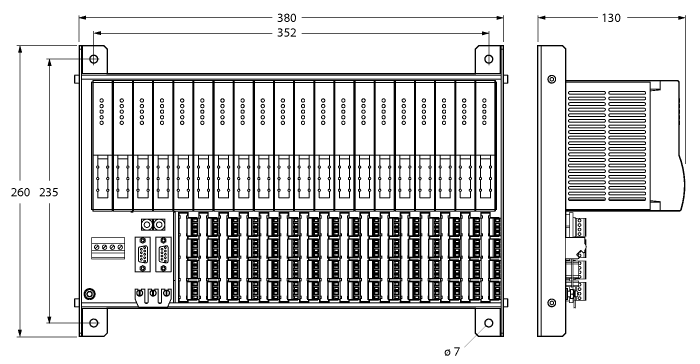

Dimensions
260 mm x 380 mm x 130 mm
Electrical connection
4 x 4 clamps per module
Fieldbus connection technology
2 x D-SUB, 9-pin
Housing material
Aluminium, extrusion profile
Installation area
zone 2
Network protocol
EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET
Protection class
IP20
Key Features
Connection technology signal
Screw terminal, Cage clamp terminal
Network protocol
PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Protection class
IP20
