Module Rack for the DPC System

DPC-49-1RMB

Order ID no. 6882026

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Connection technology signal: Screw terminal
Application: Data

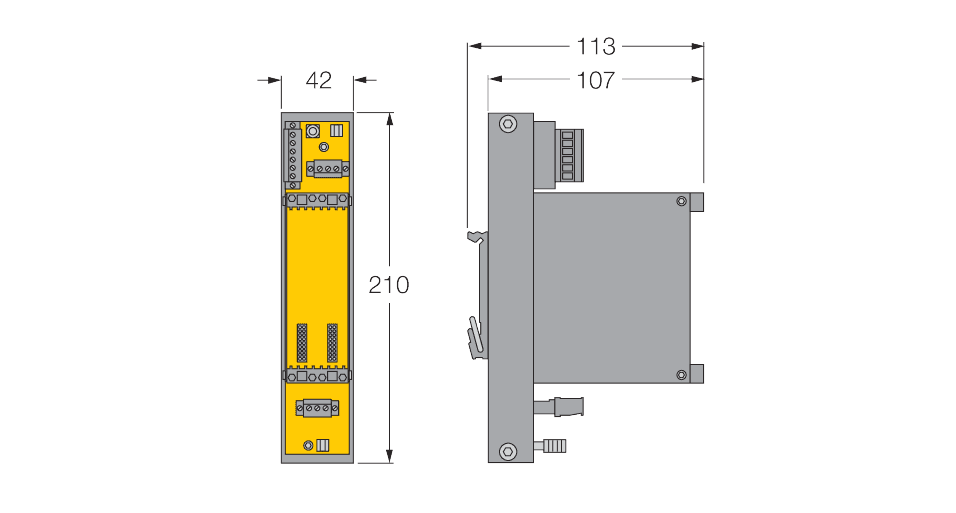

Dimensions: 210 mm x 220 mm x 113 mm
Network protocol: FOUNDATION fieldbus
Housing material: Aluminium
Installation area: non-Ex
Number of channels: 1
Device type: Module Racks
Protection class: IP20
