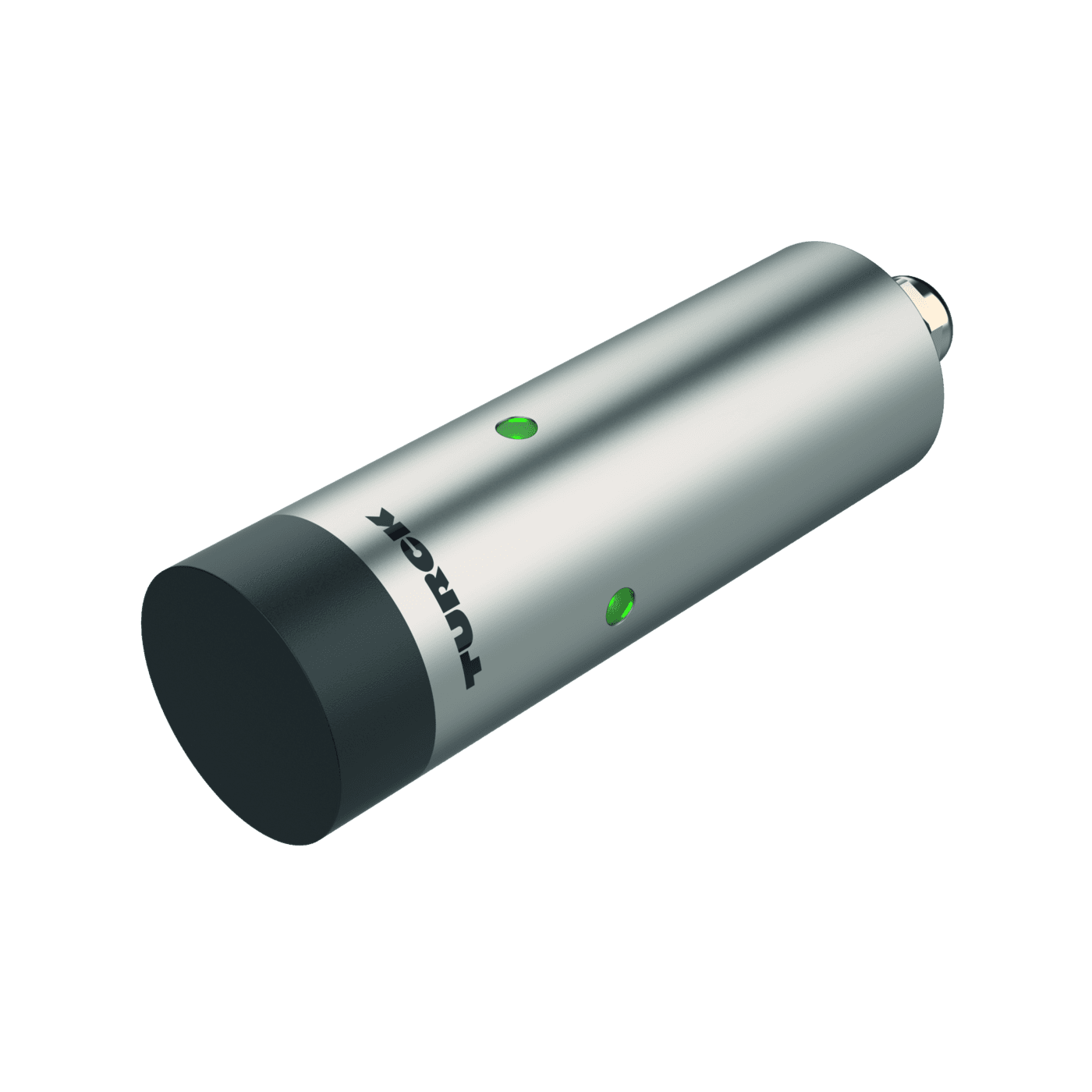

HF Read/Write Head

TN-R42TC-EX/C53

Order ID no. 100020167

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Suitable for bus mode to TBEN-*: Yes
Ambient temperature max. (°C): 40
Ambient temperature min. (°C): -20
Approvals: CE, UKCA, ATEX
Electrical connection: Terminal chamber
Design: Smooth barrel

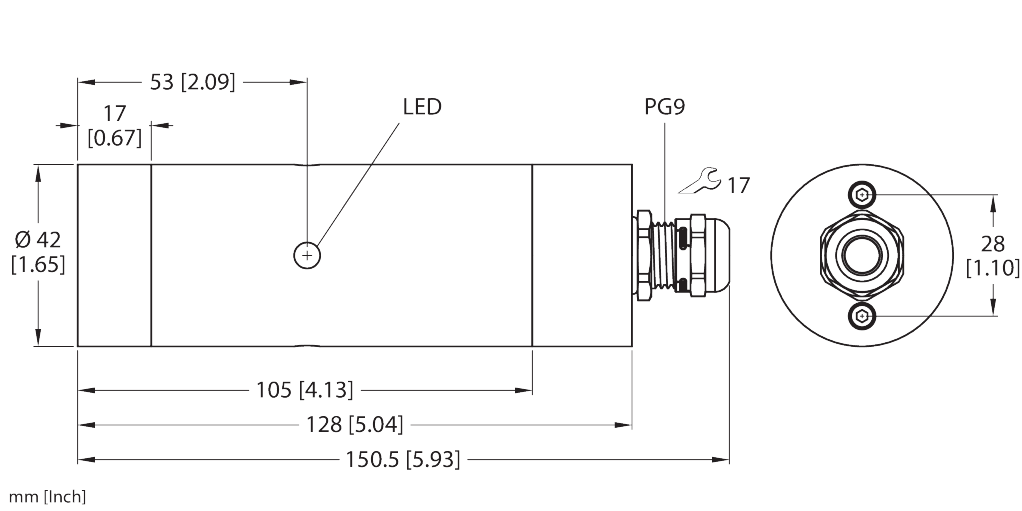

Construction size: ⌀ 42 mm
Dimensions: 150,5 mm
Network protocol: Connection to RFID interface
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP67
Quality active face: PA6
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada
Switching element function: Read/Write

In Stock
List Price	PLN 5,820.92
