HF Read/Write Head

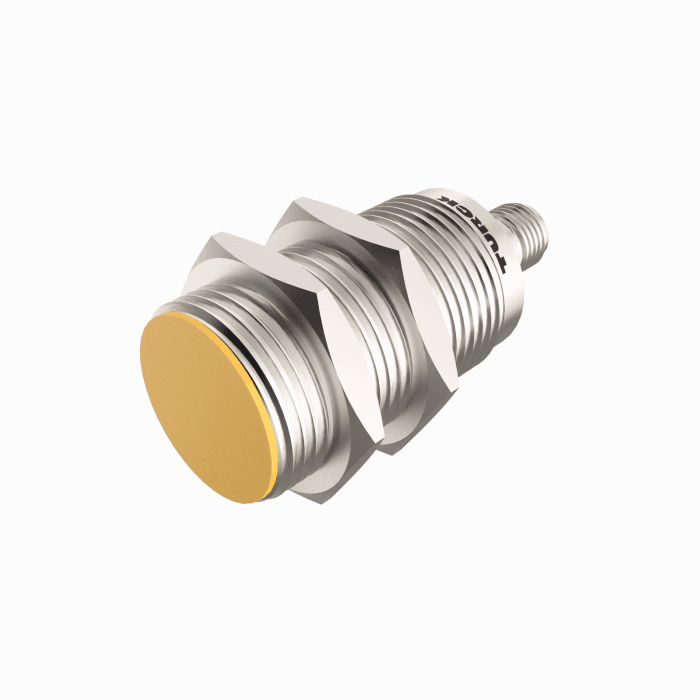

TB-EM30WD-H1147-EX/C53

Order ID no. 100036843

Item TotalPLN 1,461.04

Quantity

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Read/Write distance max. (mm): 45
Suitable for bus mode to TBEN-*: Yes
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, UL, FDA, ATEX
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 30 mm
Dimensions: 62 mm
Network protocol: Connection to RFID interface
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA
Switching element function: Read/Write
