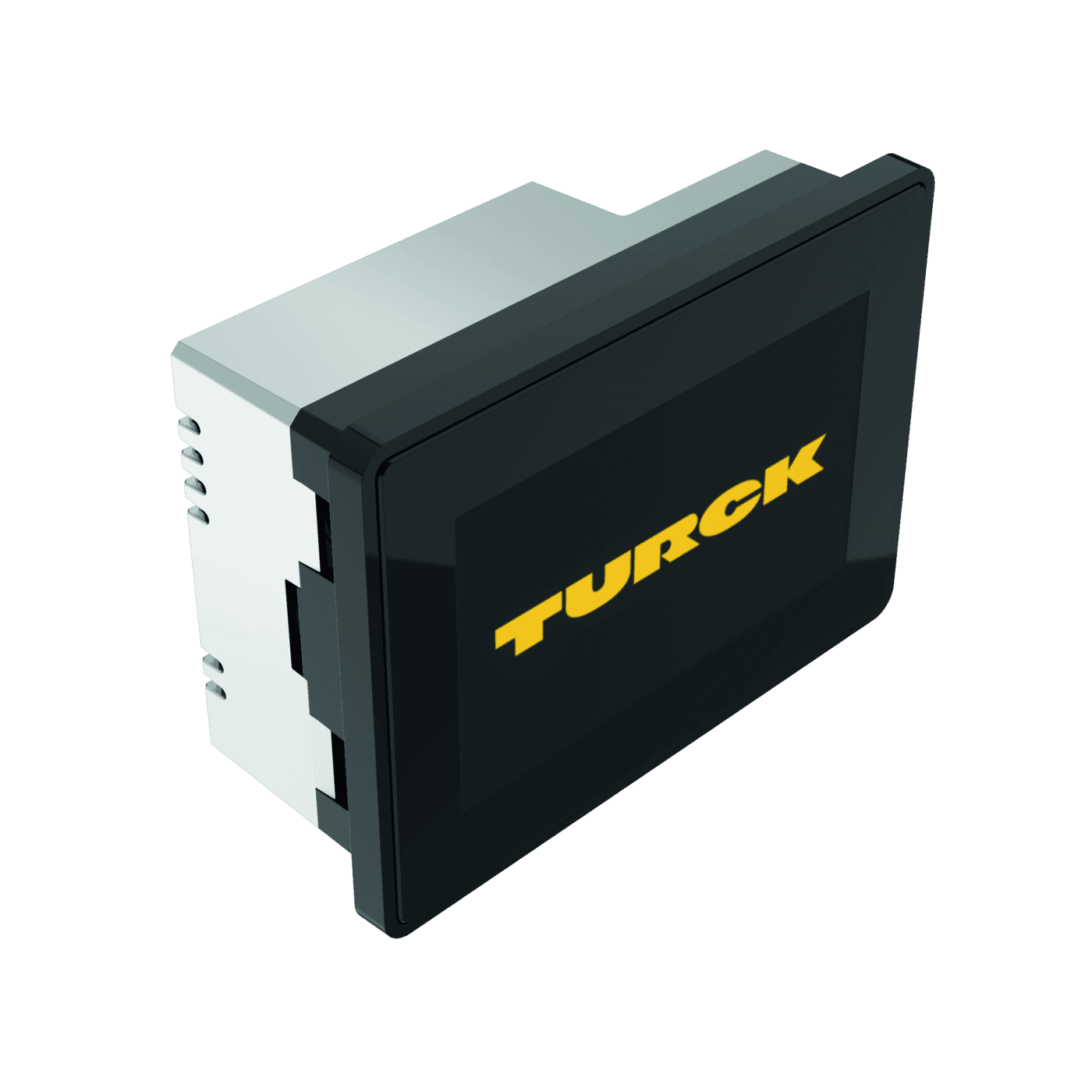

TX800 HMI/PLC product series 5″ display — CODESYS V3 PLC with TARGET and WEB VISU

TX805-P3CV01

Order ID no. 100046992

Application area: Factory Automation
Approvals: CE, cULus, DNV
Device function: HMI/PLC
Device type: Cloud Gateway, Industrial Control
Diagonal screen size (″): 5
Dimensions: 107 mm x 147 mm x 52 mm
Dimmable: Yes
Fieldbus master: CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, SAE J1939
Fieldbus slave: Modbus RTU, Modbus TCP, PROFINET
Programming: CODESYS V3
Protection class: IP66 front, IP20 rear
Radio interface: Optionally expandable
Resolution: 800 x 480 Pixel
Touchscreen: Capacitive, Glass front
