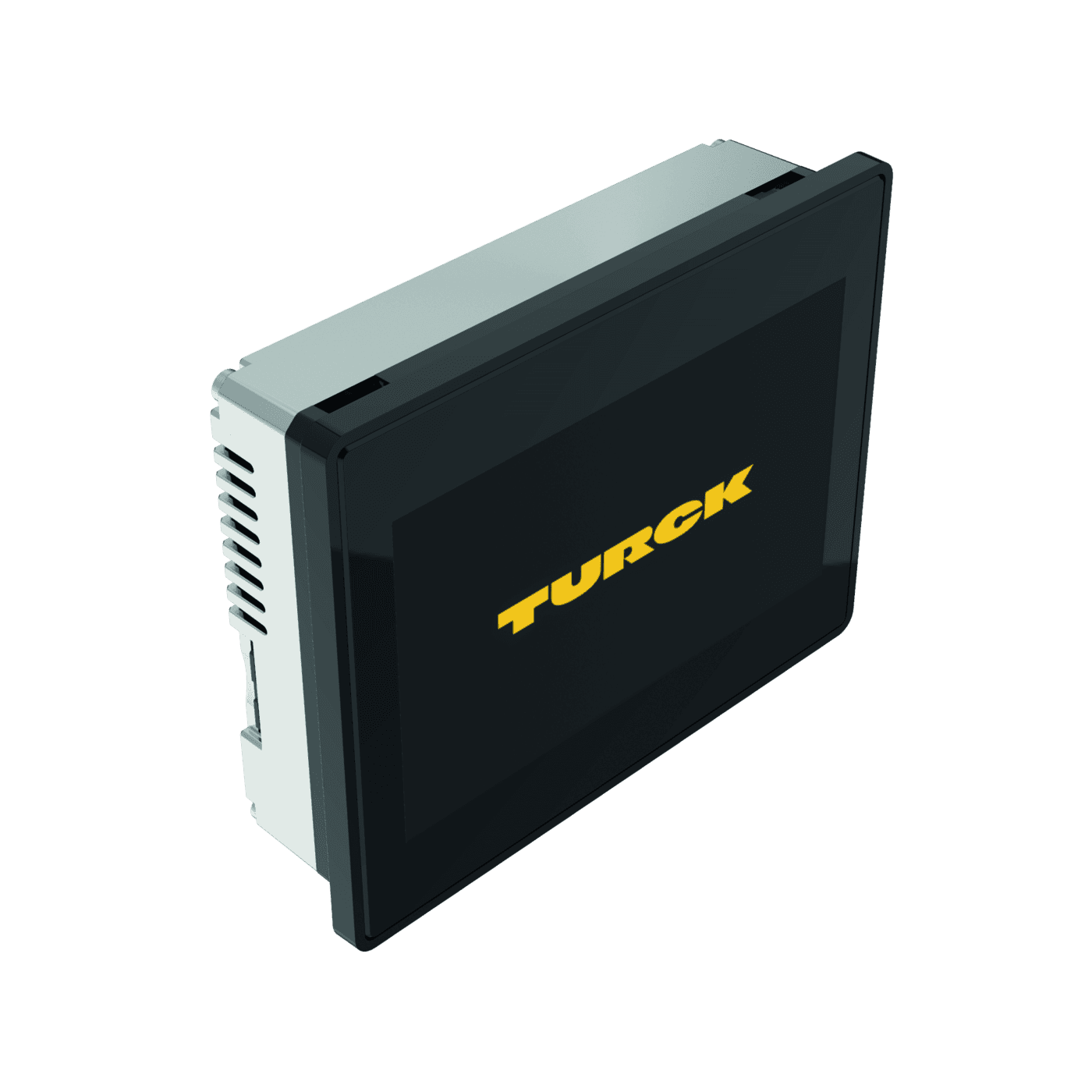

TX800 HMI/PLC Product Series

TX807-P3CV01

Order ID no. 100046993

Application area: Factory Automation
Approvals: CE, cULus, DNV
Device function: HMI/PLC
Dimensions: 147 mm x 187 mm x 47 mm
Dimmable: Yes
Fieldbus master: PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave: Modbus TCP, Modbus RTU, PROFINET
Programming: CODESYS V3
Device type: Cloud Gateway, Industrial Control
Protection class: IP66 front, IP20 rear
Radio interface: Optionally expandable
Diagonal screen size (″): 7
Touchscreen: Capacitive, Glass front
