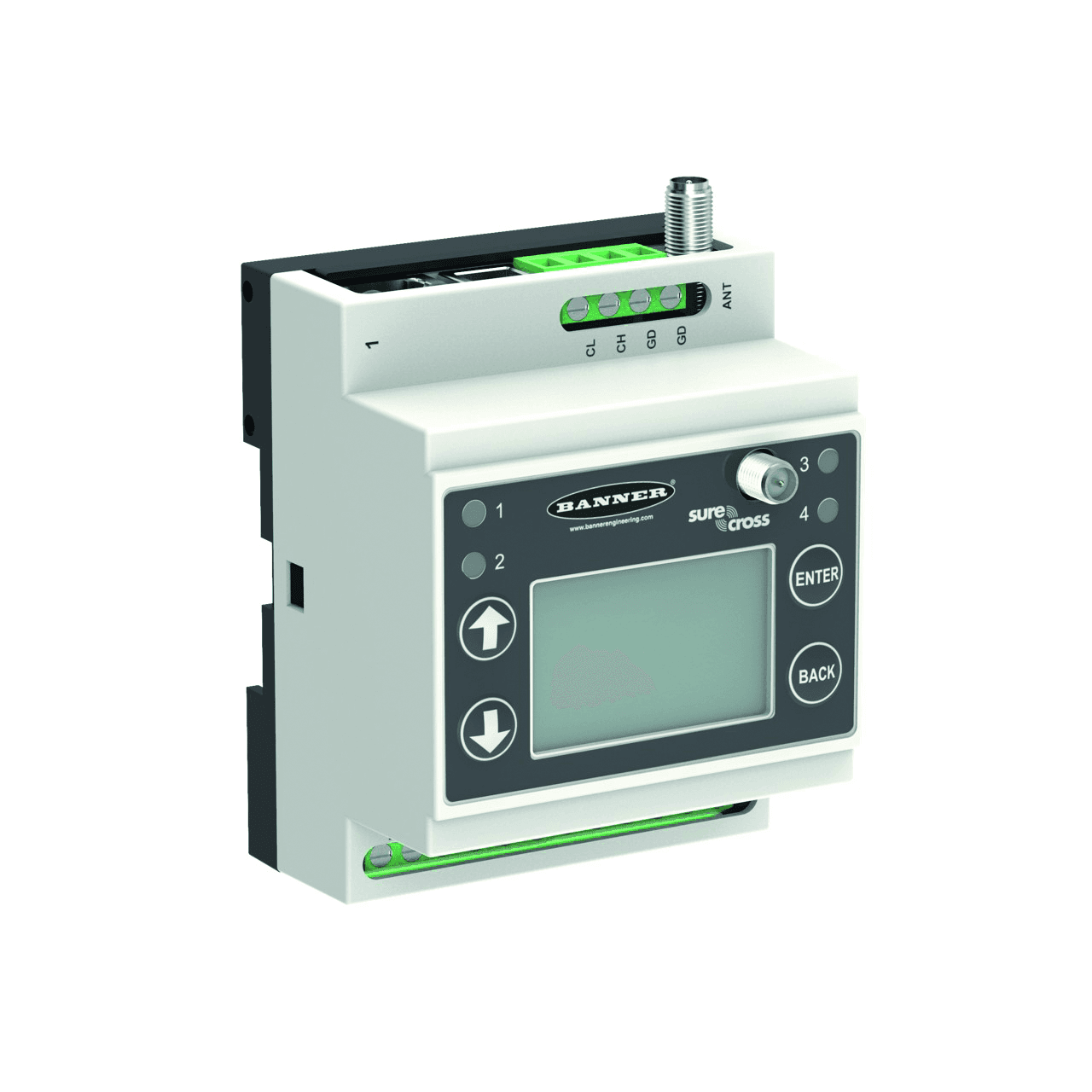

Network Controller With Integrated 2.4-GHz Data Radio

DXM700-B1R4

Order ID no. 3806249

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Antenna connection: RP-SMA female connector
Communication protocol: EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS485
Design: Rectangular

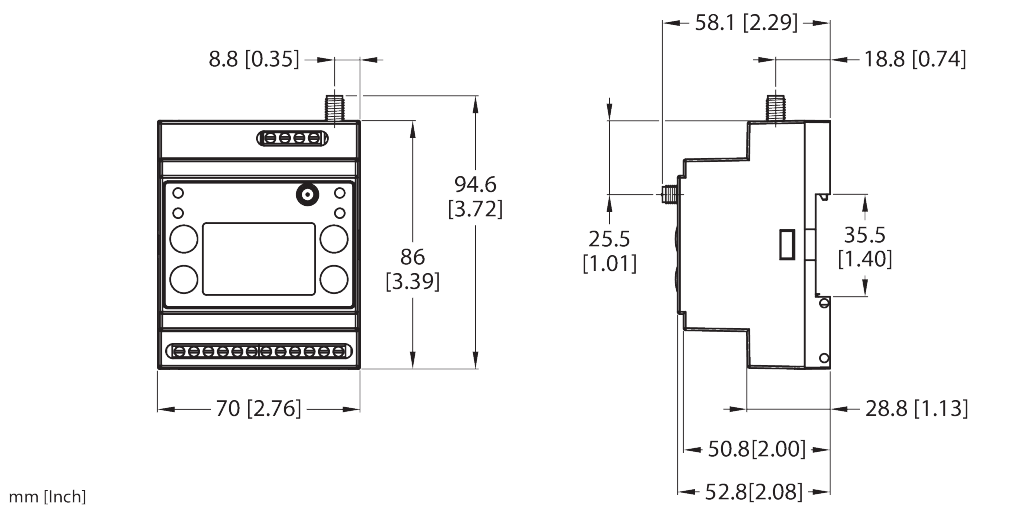

Dimensions: 86 mm x 70 mm x 58,1 mm
Electrical connection: Screw terminals
Frequency band: 2.4-GHz ISM band
Frequency range: 2.402 - 2.483 GHz
Function: Tree topology
Housing material: Plastic
Housing quality: PC
Housing surface: Grey
Max. range (mm): 3200000
Operating voltage: DC
Output type: PNP
Protection class: IP20
Runs with battery: No
Switching element function: Programmable
