Home
Products

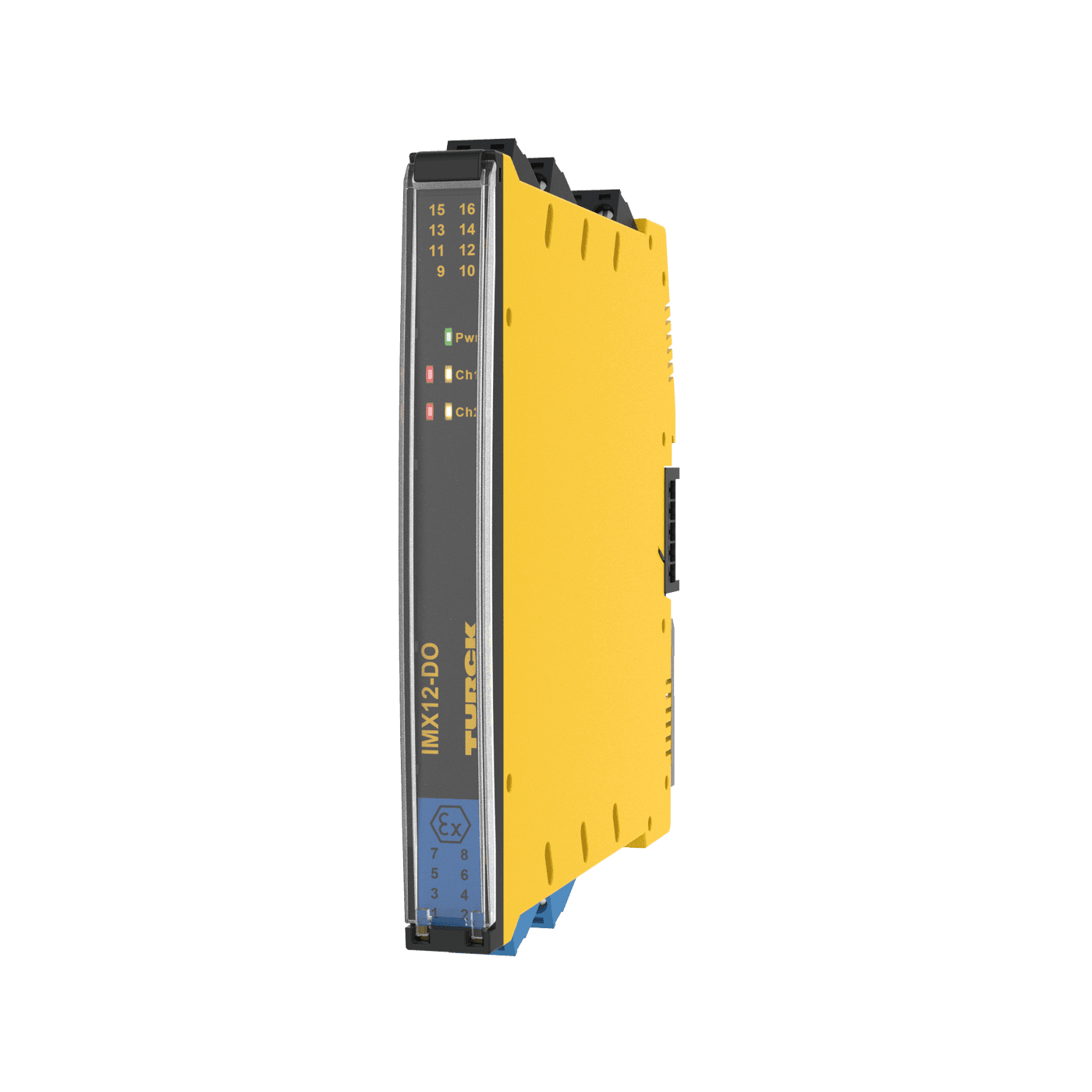

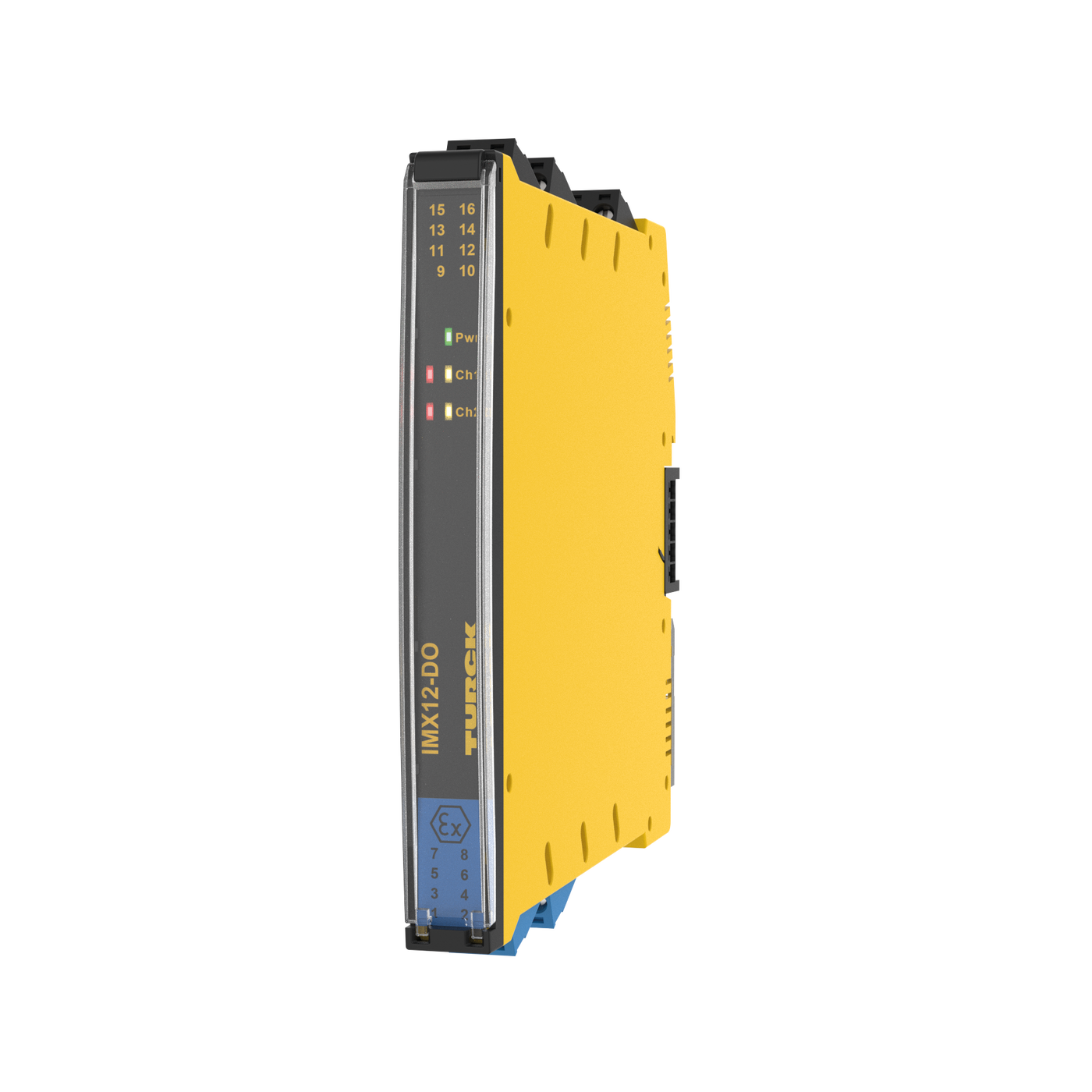

IMX12-DO01-2U-2U-PR/24VDC

IMX12-DO01-2U-2U-PR/24VDC

Thumbnail for IMX12-DO01-2U-2U-PR/24VDC

Thumbnail for IMX12-DO01-2U-2U-PR/24VDC

Solenoid Driver

IMX12-DO01-2U-2U-PR/24VDC

Order ID no. 7580104

In Stock
Price Group	D3
List Price	PLN 1,124.30

Item TotalPLN 1,124.30

Quantity

Contact Support

homeHome
Loading...

Functional safety (SIL/PL): SIL2
Signal type: Digital output
Nominal voltage: Power bridge 24 VDC
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, IECEx, cULus, INMETRO, TR CU
Number of channels: 2
Electrical connection: Removable screw terminals, 2-pin

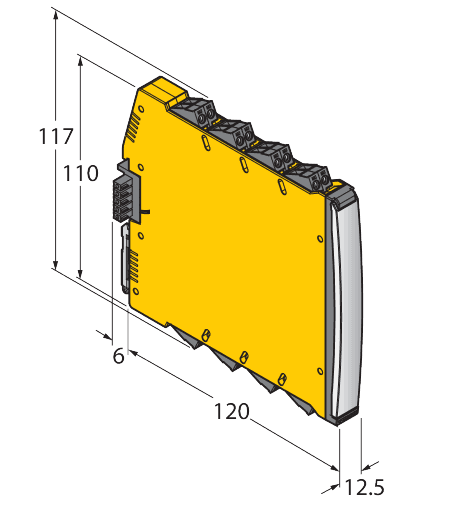

Dimensions: 120 mm x 12,5 mm x 117 mm
Ex version: yes
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: Current/voltage-limited signal
Power supply: 24 VDC
Protection class: IP20

Key Features

Number of channels: 2
Signal type: Digital output
Nominal voltage: Power bridge 24 VDC

homeTurck-Shop
Interface Technology
Safety Barriers
IMX12-DO01-2U-2U-PR/24VDC
