PVL500PQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVL500PQ
Order ID no. 3032311
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Cable length (m)
2
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
500

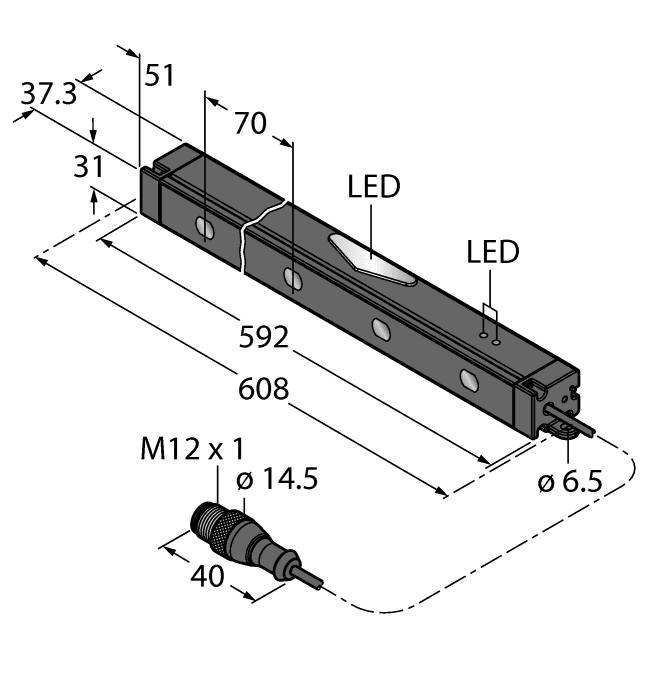

Dimensions
608 mm x 31 mm x 37,3 mm
Housing material
Metal
Housing quality
Anodized AL
Input type
PNP
Light type
Red
Number of beams
8
Number of colors/segments
2
Function
Retroreflective Sensor
Operating mode
Unpolarized
Operating voltage
DC
Optical resolution (mm)
70
Protection class
IP50
Max. range (mm)
1500
Switching element function
NO contact
Wavelength (nm)
630
Key Features
Scan field (mm)
500
Light type
Red
Number of colors/segments
2
