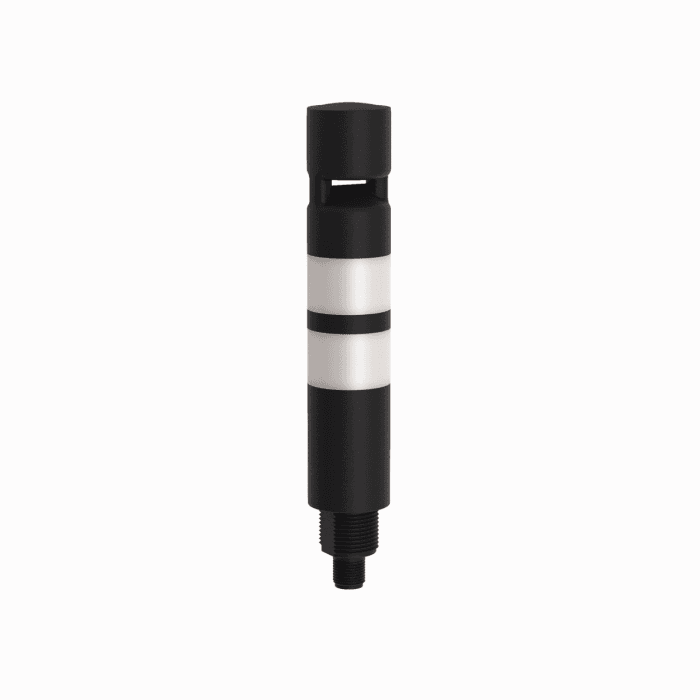

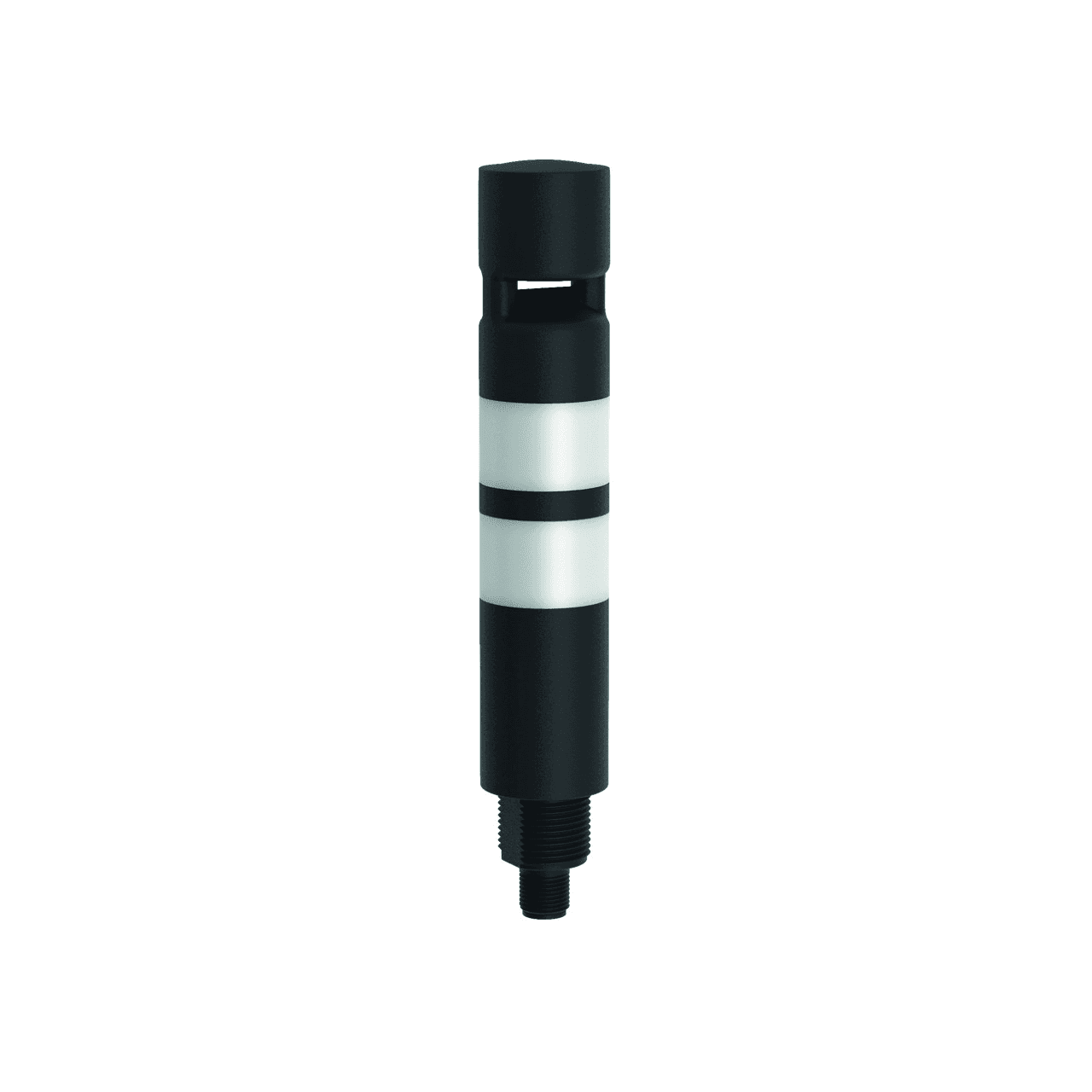

LED Signal Light
TL30BGYXXXAXQD
Order ID no. 3805413
In Stock
Price Group
F3
List Price
PLN 685.59
Item Total
PLN 685.59
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Acoustic signal
Continuous tone
Cascadable
No
Electrical connection
Connector
Connector type
M12 x 1
Design
Smooth barrel
Construction size
⌀ 30 mm

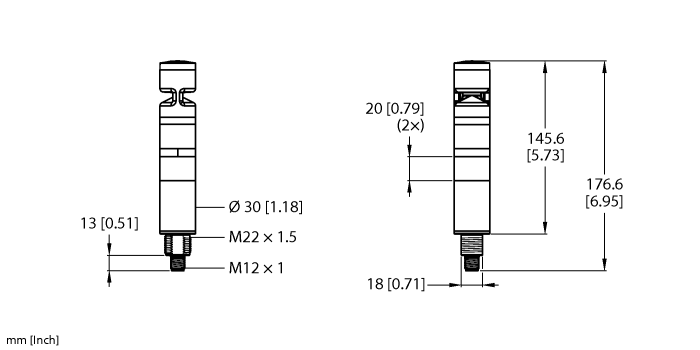

Dimensions
176,6 mm
Dimmable
No
Housing material
Plastic
Housing quality
PC
Housing surface
Black
Input type
Bipolar (PNP/NPN)22
Light type
Green, Yellow
Volume (dB)
90 dB
Number of colors/segments
2
Function
Tower light
Operating voltage
DC
Protection class
IP65
Key Features
Acoustic signal
Continuous tone
Dimmable
No
Light type
Green, Yellow
Number of colors/segments
2
