Safety Light Curtain

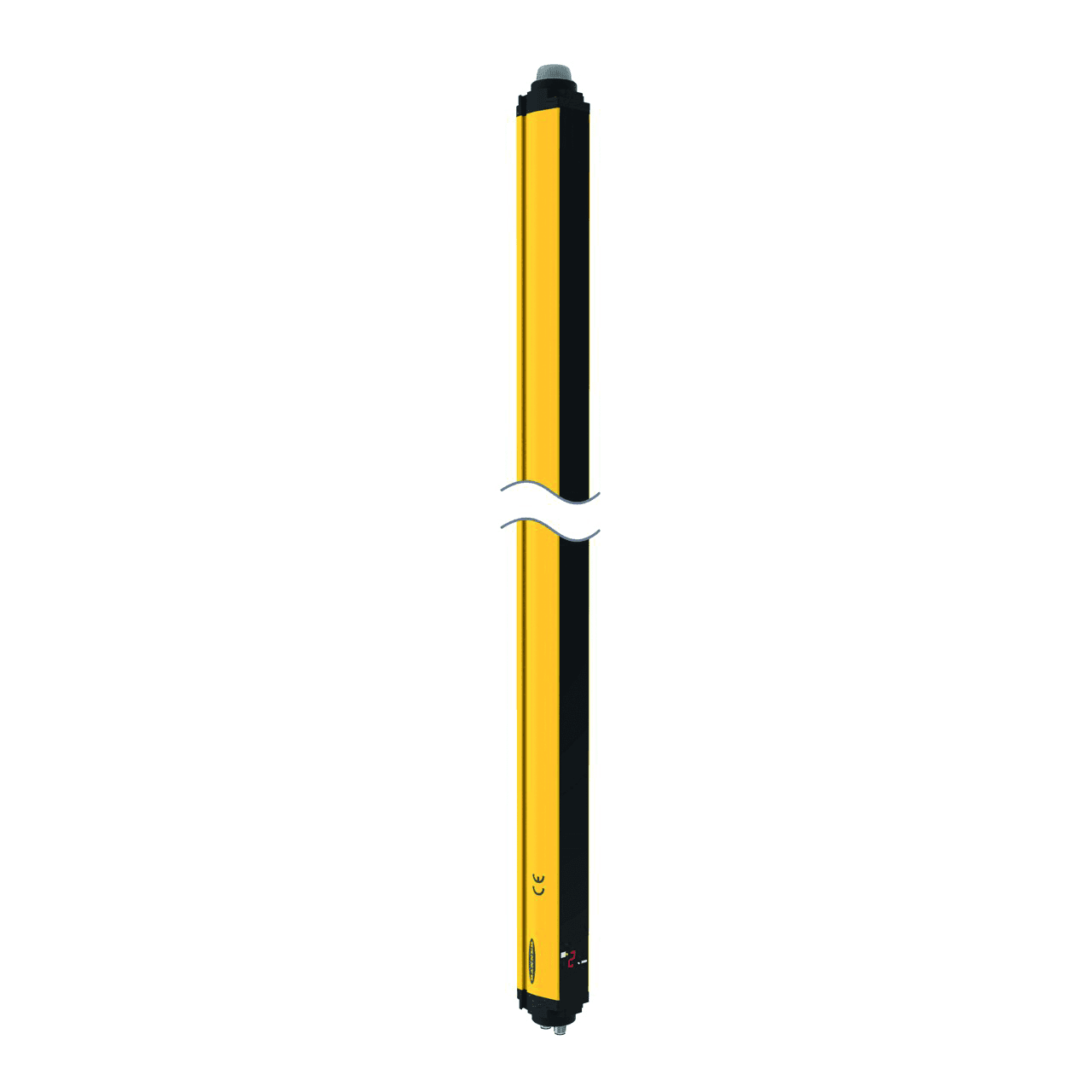

SGSMA4-400Q12
Order ID no. 3803236
In Stock
Price Group
G1
List Price
PLN 7,436.44
Item Total
PLN 7,436.44
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Machine Safety
Safety Grid Systems
SGSMA4-400Q12
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
1200
Dimensions
56,9 mm x 52 mm x 1306,35 mm
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Light type
IR
Function
Light screen
Optical resolution (mm)
400
Protection class
IP65
Max. range (mm)
8000
PL acc. to EN ISO 13849-1
Level e
SIL acc. to IEC 61508
3
Category acc. to ISO 13849-1:2008
4
Switching element function
2 x OSSD, NO contact
Wavelength (nm)
950
With muting function
Yes
Key Features
Scan field (mm)
1200
Optical resolution (mm)
400
Max. range (mm)
8000
