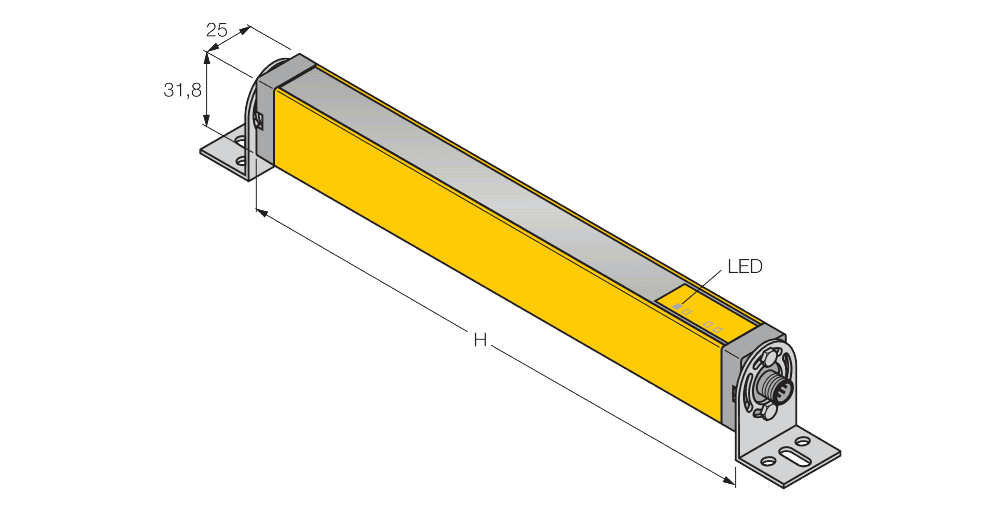

Safety light curtain for personnel safety Receiver
LS2TR30-750Q8
Order ID no. 3073538
In Stock
Price Group
G1
List Price
6194,51 zł
Item Total
6194,51 zł
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Machine Safety
Safety Light Curtains
LS2TR30-750Q8
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Cascadable
No
Connector type
M12 x 1
Design
Rectangular
Dimensions
31,8 mm x 25,2 mm x 815 mm
Electrical connection
Connector
Function
Light curtain
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Max. range (mm)
15000
Number of beams
40
Optical resolution (mm)
30
Protection class
IP65
Scan field (mm)
750
Start/Restart interlock
no
Switching element function
2 x NC contact
With muting function
No
Key Features
Cascadable
No
Scan field (mm)
750
Number of beams
40
Optical resolution (mm)
30
